Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0727 › Female
ConnectorsFemale

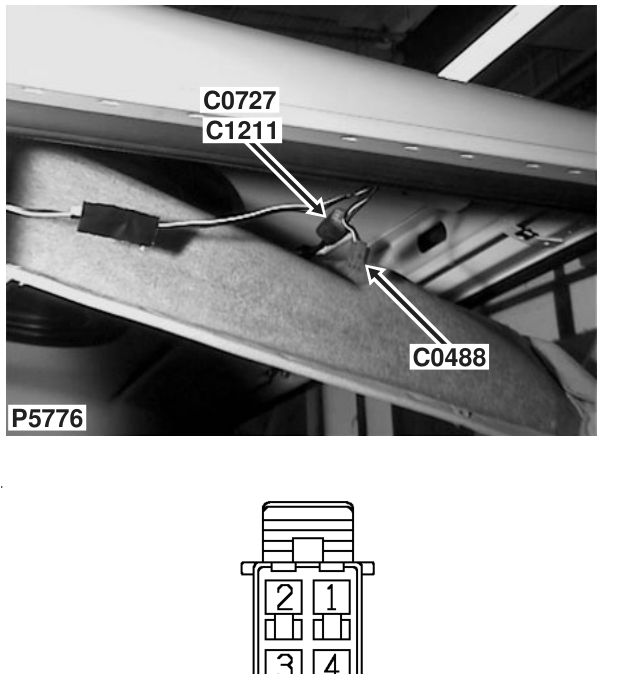

Main harness to interior lamp harness
Female
NATURAL
Headlining - front RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | B | 15 |
| 2 | PW | 17 |
| 2 | PW | 16 |
| 3 | PN | 17 |
| 3 | PN | 16 |
| 4 | PU | 17 |
| 4 | PU | 16 |
