Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0730 › Female
ConnectorsFemale

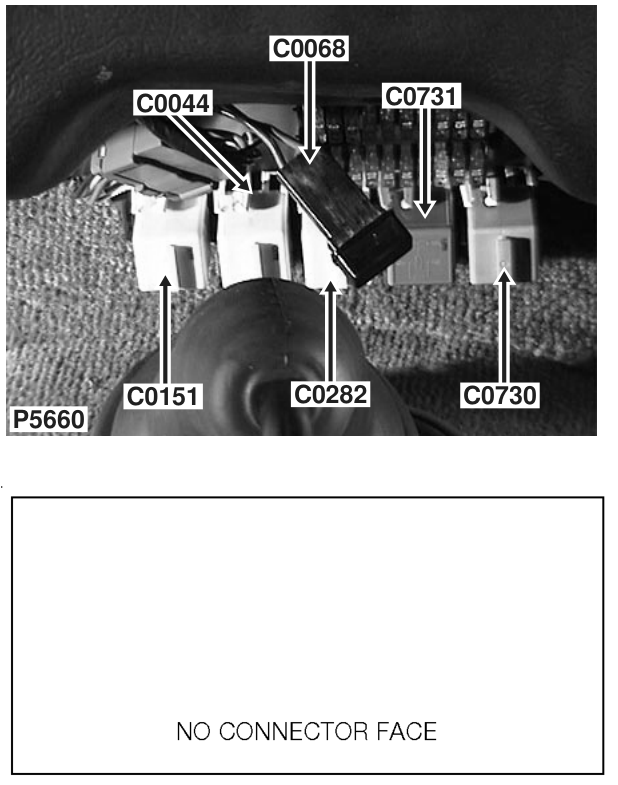

Relay - Fuel pump
Female
BLACK
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 2 | PW | 21 |
| 4 | NO | 21 |
| 6 | UP | 21 |
| 8 | PW | 21 |
