Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0786 › Female
ConnectorsFemale

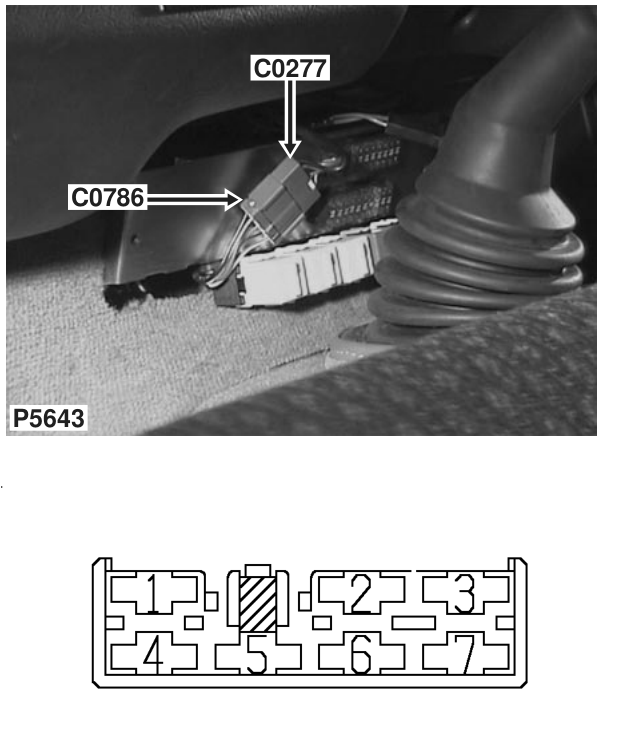

Main harness to air conditioning (A/C) harness
Female
BROWN
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | 1 |
| 3 | YS | 21 |
| 3 | BS | 22 |
| 4 | PB | 21 |
| 4 | BP | 22 |
| 5 | RO | 1 |
| 6 | NP | 1 |
| 7 | B | 1 |
