Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0787 › Female
ConnectorsFemale

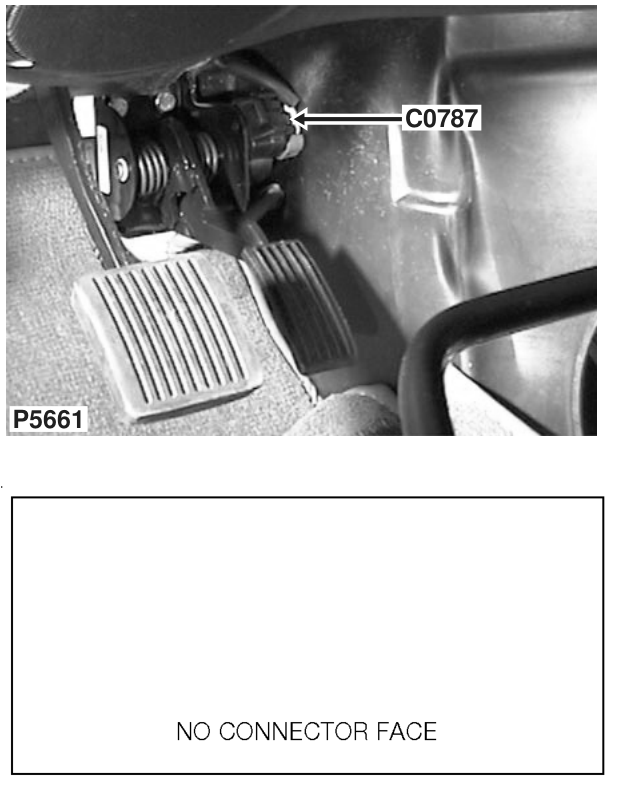

Switch - Throttle pedal - Td5
Female
BLACK
Under LH side of fascia
| Cav | Col | CCT |
|---|---|---|
| B | WP | ALL |
| D | BY | ALL |
| F | WG | ALL |
| G | BY | ALL |
| J | WP | ALL |
| K | WS | ALL |
