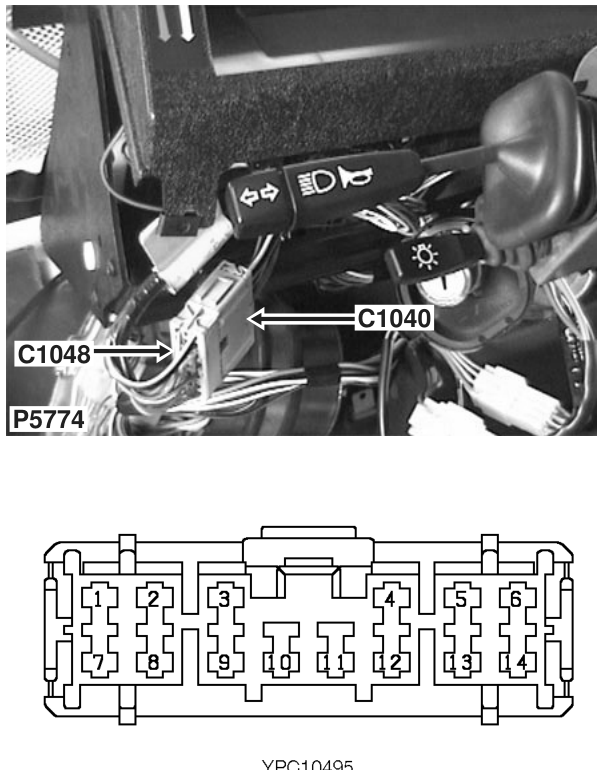

- C1040 › Female
ConnectorsFemale
Main harness to instrument pack harness
Female
LIGHT GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | 3 |
| 2 | B | 3 |
| 3 | YK | 21 |
| 4 | RO | 3 |
| 5 | GB | 3 |
| 6 | PN | 3 |
| 7 | SB | 3 |
| 8 | GU | 21 |
| Cav | Col | CCT |
|---|---|---|
| 8 | GU | 27 |
| 9 | B | 3 |
| 10 | BR | 3 |
| 11 | NU | 21 |
| 11 | NU | 24 |
| 12 | WO | 3 |
| 13 | K | 17 |
