Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section

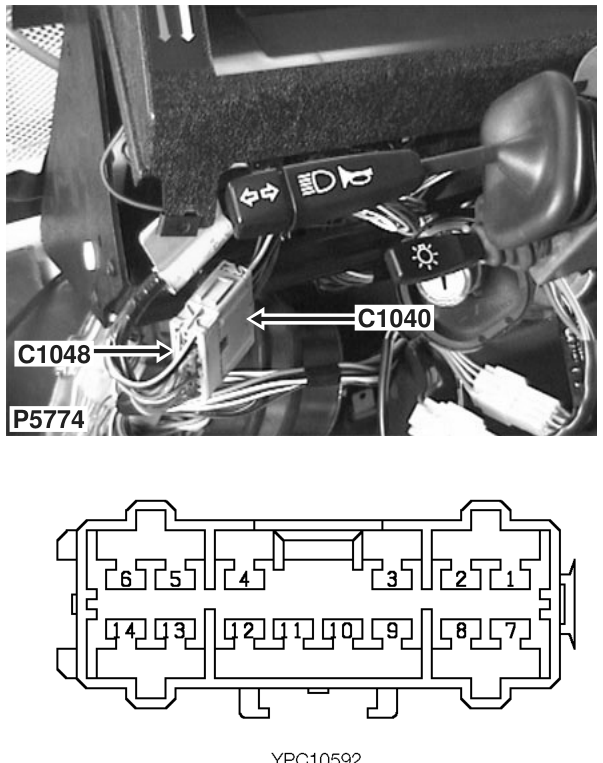

- C1048 › Male
ConnectorsMale
Main harness to instrument pack harness
Male
LIGHT GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | B | ALL |
| 3 | YK | ALL |
| 4 | RO | ALL |
| 5 | GB | ALL |
| 6 | PN | ALL |
| 7 | SB | ALL |
| 8 | GU | 22 |
| Cav | Col | CCT |
|---|---|---|
| 8 | LGU | 21 |
| 9 | B | ALL |
| 10 | BR | ALL |
| 11 | NU | ALL |
| 12 | WO | ALL |
| 13 | K | ALL |
| 14 | WS | 23 |
