Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1211 › Male
ConnectorsMale

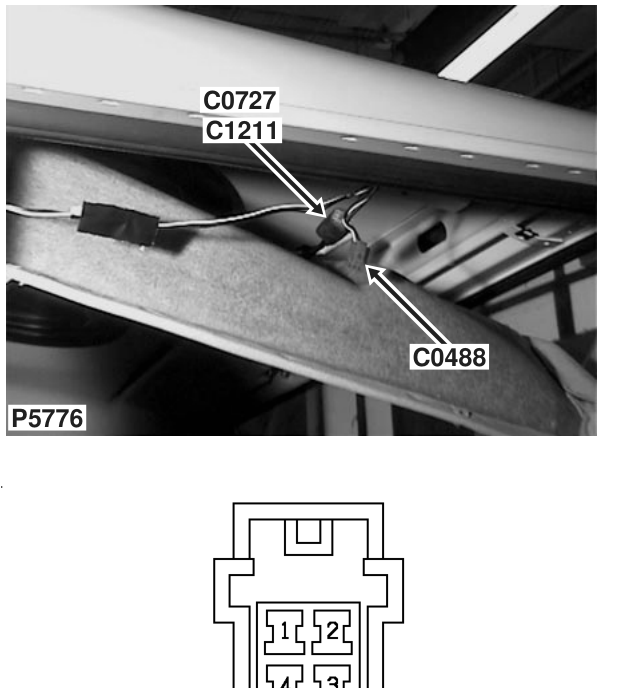

Main harness to interior lamp harness
Male
NATURAL
Headlining - front RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | PW | ALL |
| 3 | P | ALL |
| 4 | PU | ALL |
