Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section

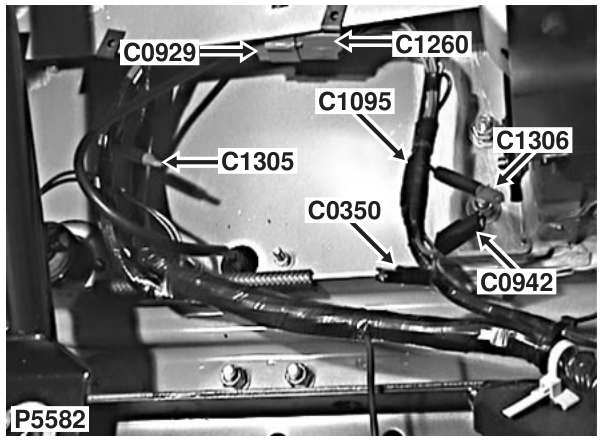

- C1260 › Male
ConnectorsMale
Trailer pick-up

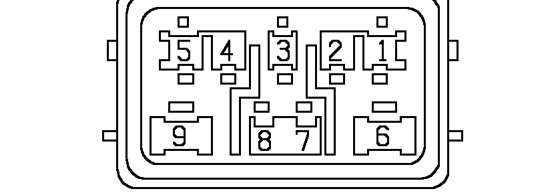

Male
DARK GREY
Below RH rear wheelarch
| Cav | Col | CCT |
|---|---|---|
| 1 | GR | ALL |
| 2 | RB | ALL |
| 3 | GW | ALL |
| 4 | RO | ALL |
| 5 | GP | ALL |
| 6 | P | ALL |
| 7 | GN | ALL |
| 8 | RY | ALL |
| 9 | B | ALL |
