Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1264 › Female
ConnectorsFemale

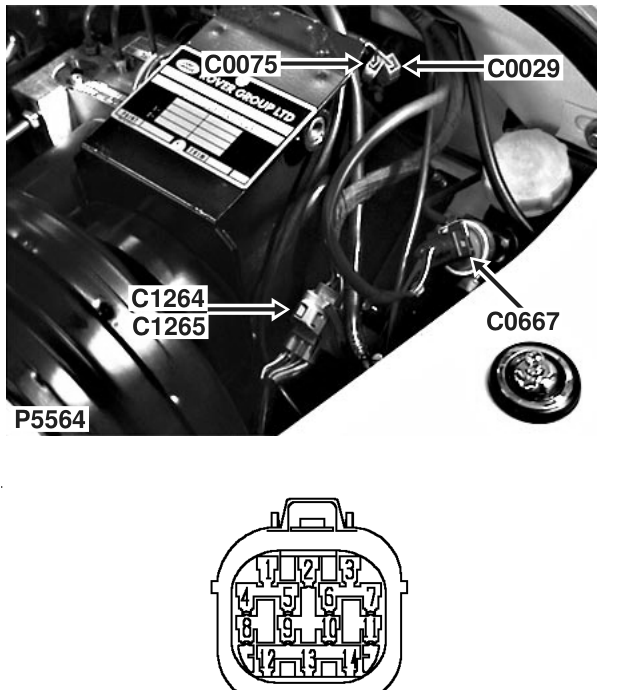

Main harness to wing harness
Female
GREY
Adjacent pedal box
| Cav | Col | CCT |
|---|---|---|
| 1 | US | ALL |
| 2 | UK | ALL |
| 3 | B | ALL |
| 4 | GR | ALL |
| 5 | RB | ALL |
| 6 | PB | ALL |
| 7 | RO | 27 |
| Cav | Col | CCT |
|---|---|---|
| 8 | OB | 15 |
| 9 | B | ALL |
| 10 | B | 15 |
| 11 | B | 15 |
| 12 | LGB | ALL |
| 13 | BLG | ALL |
| 14 | UY | 27 |
