Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0039 › Female
ConnectorsFemale

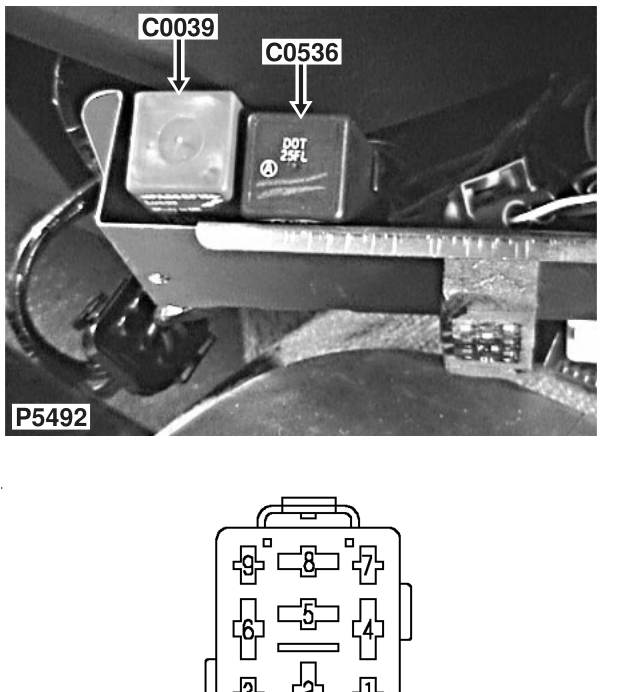

Relay - Front wiper
Female
BLACK
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | YLG | ALL |
| 4 | B | ALL |
| 5 | NLG | ALL |
| 6 | LGB | ALL |
| 8 | G | ALL |
