Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0040 › Female
ConnectorsFemale

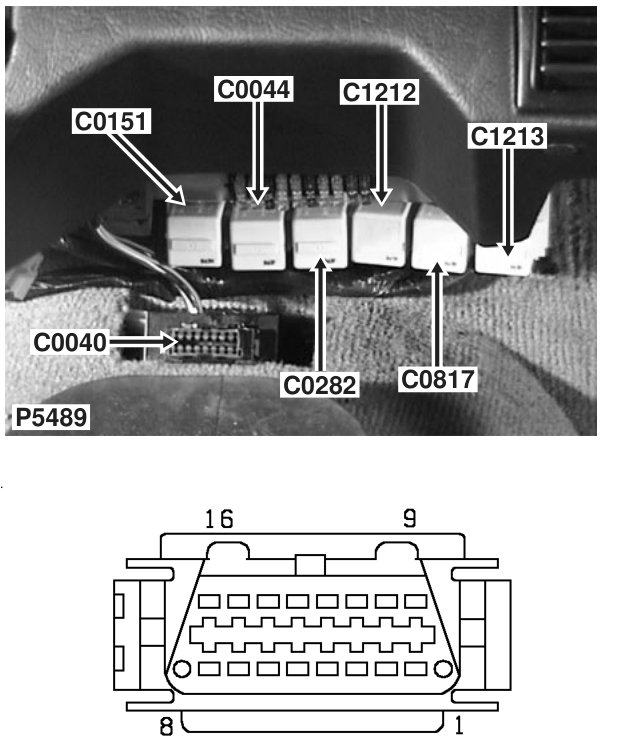

Diagnostic socket
Female
BLACK
Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 4 | B | ALL |
| 5 | B | ALL |
| 7 | WLG | ALL |
| 8 | OLG | ALL |
| 15 | WK | ALL |
| 16 | P | ALL |
