Speakers
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0092 › Speakers

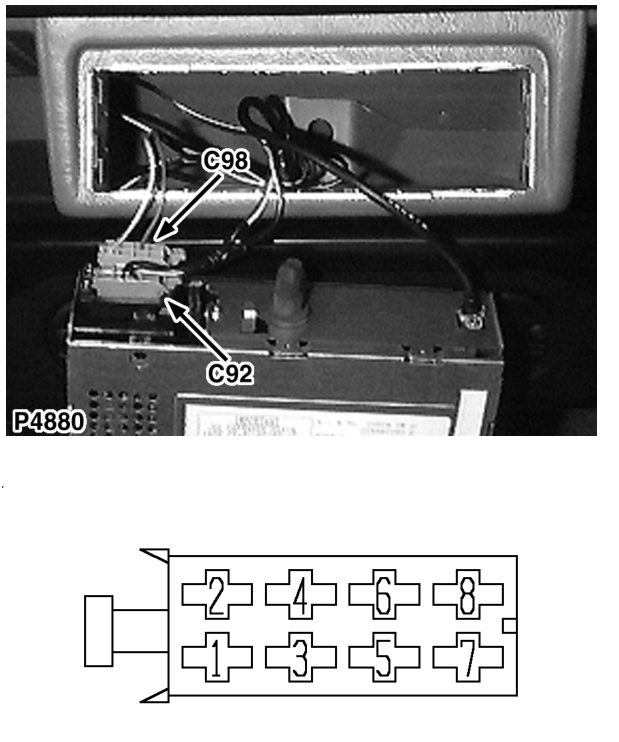

ConnectorsSpeakers
Speakers
Female
BROWN
Behind radio
| Cav | Col | CCT |
|---|---|---|
| 1 | BW | ALL |
| 2 | BN | ALL |
| 3 | BK | ALL |
| 4 | BR | ALL |
| 5 | BY | ALL |
| 6 | BO | ALL |
| 7 | BG | ALL |
| 8 | BU | ALL |
