Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0093 › Female
ConnectorsFemale
Switch - Headlamp levelling

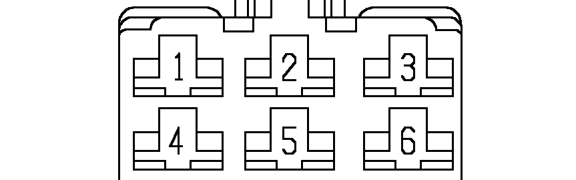

Female
NATURAL

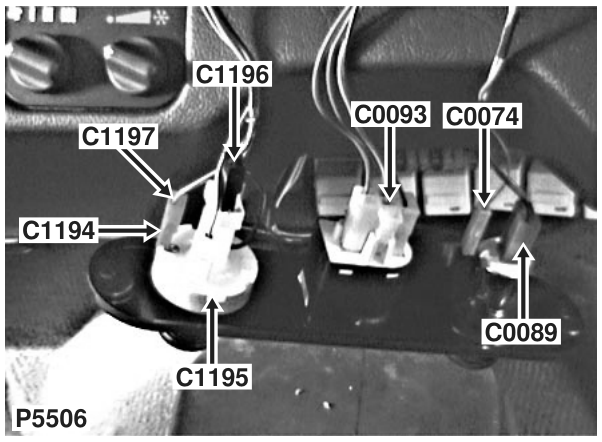

Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 2 | UY | ALL |
| 3 | B | ALL |
| 4 | RO | ALL |
| 5 | RO | ALL |
