Relay - Blower
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0153 › Relay - Blower

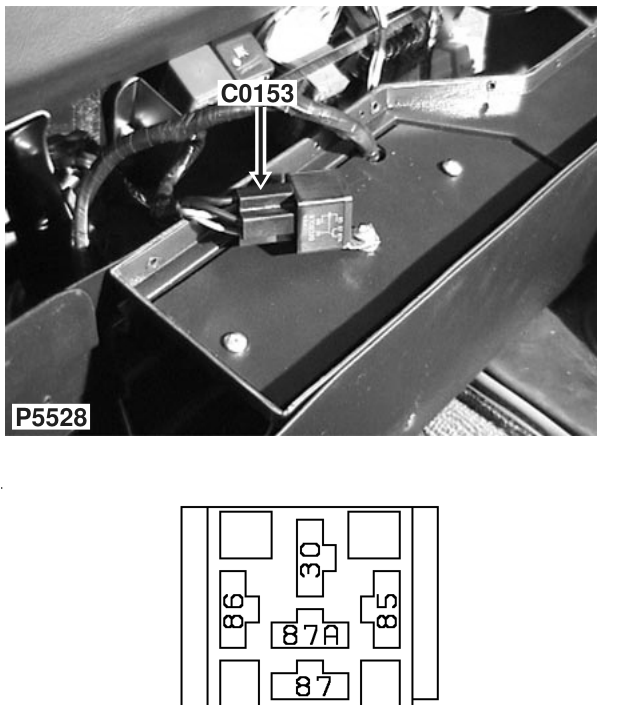

ConnectorsRelay - Blower
Relay - Blower
Female
BLACK
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | UR | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | UY | ALL |
