Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

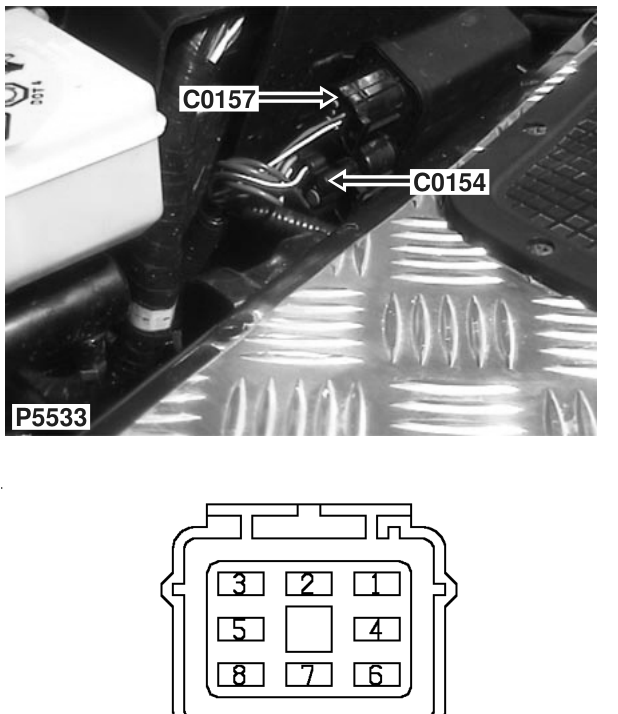

- C0154 › Female
ConnectorsFemale
Relay module
Female
BLACK
RH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 3 | NO | ALL |
| 4 | WP | ALL |
| 6 | NLG | ALL |
| 7 | PW | ALL |
| 8 | NO | ALL |
