Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

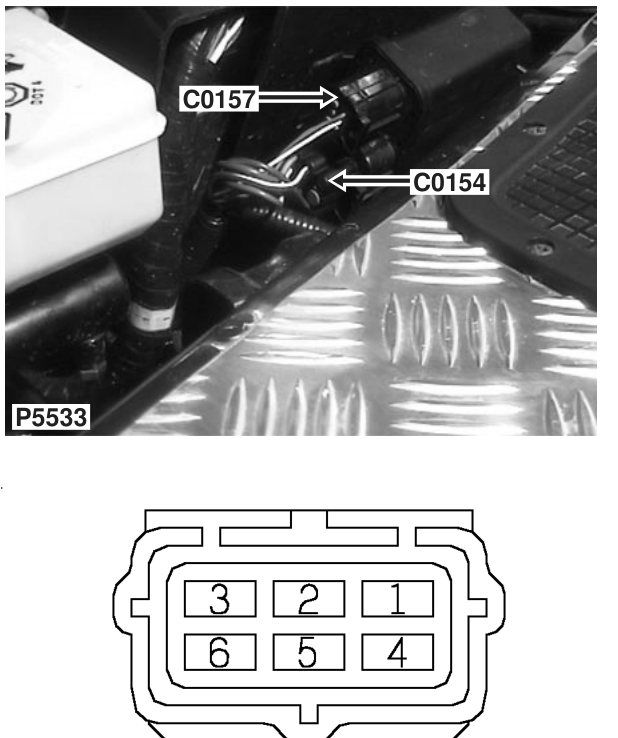

- C0157 › Female
ConnectorsFemale
Relay module
Female
BLACK
RH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | UP | ALL |
| 2 | WG | ALL |
| 3 | UR | ALL |
