Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0160 › Female

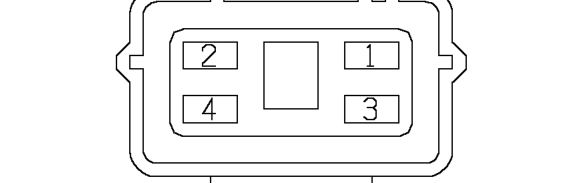

ConnectorsFemale
Engine harness to main harness
Female
BLACK

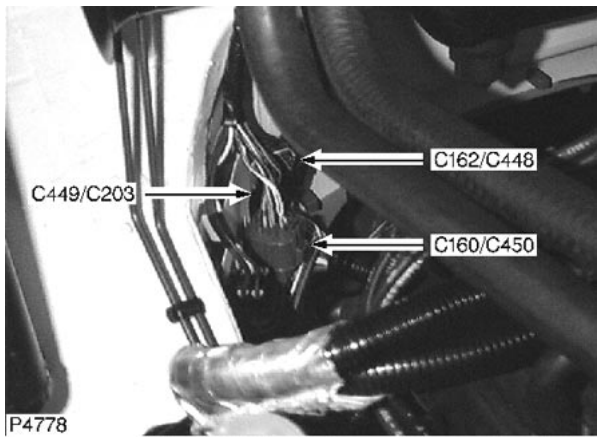

RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | PW | ALL |
| 2 | WP | ALL |
| 3 | NLG | ALL |
| 4 | NR | ALL |
