Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0175 › Female
ConnectorsFemale

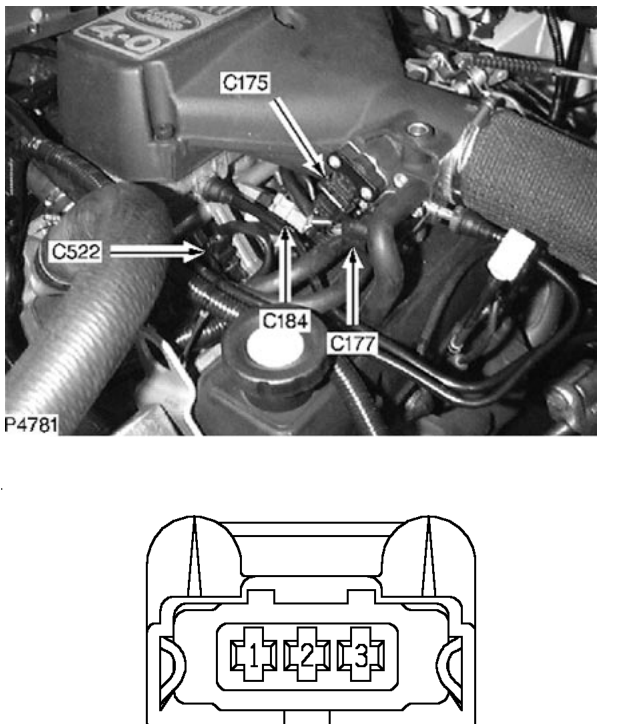

Sensor - Throttle position (TP)
Female
BLACK
Top of engine - LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | R | ALL |
| 2 | YLG | ALL |
| 3 | RB | ALL |
