Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

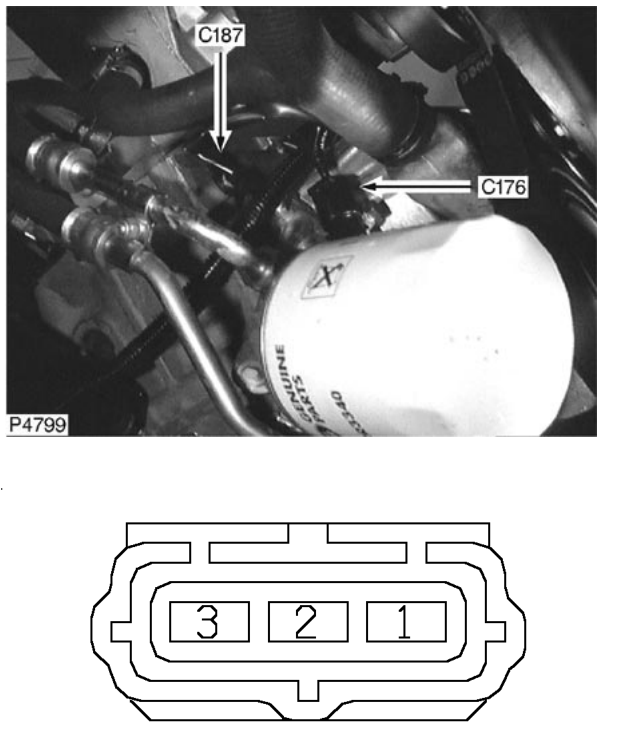

- C0176 › Female
ConnectorsFemale
Sensor - Camshaft position (CMP)
Female
BLACK
Bottom of engine - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | RB | ALL |
| 2 | SU | ALL |
| 3 | NO | ALL |
