Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0177 › Female
ConnectorsFemale

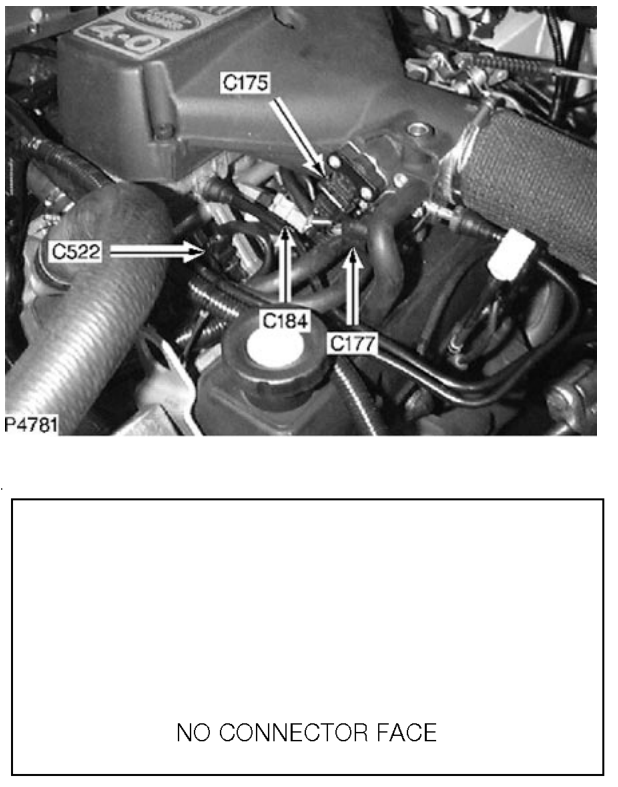

Idle air control valve (IACV)
Female
BLACK
Top of engine - LH side
| Cav | Col | CCT |
|---|---|---|
| A | OR | ALL |
| B | RG | ALL |
| C | GW | ALL |
| D | US | ALL |
