Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0223 › Male
ConnectorsMale

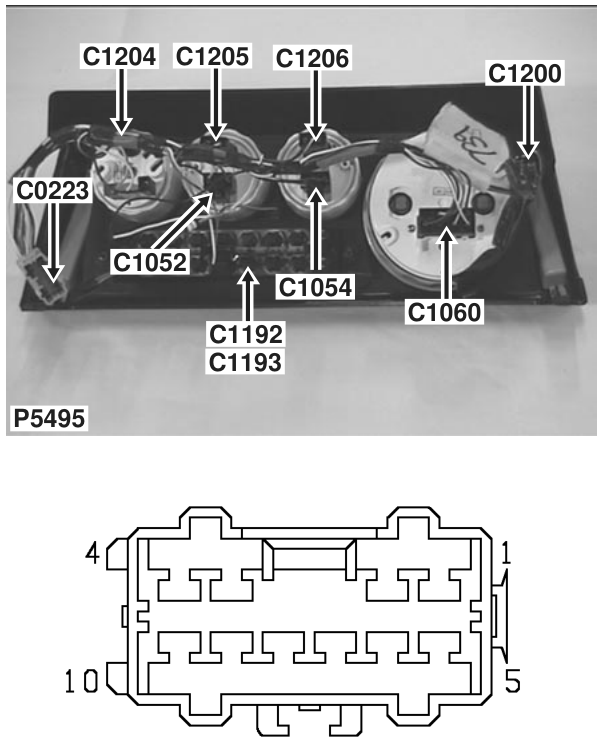

Main harness to fascia harness
Male
LIGHT GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | B | ALL |
| 3 | YK | ALL |
| 4 | RW | ALL |
| 5 | SR | ALL |
| 6 | WS | ALL |
| 7 | GB | ALL |
| 8 | GU | ALL |
| 9 | WB | ALL |
| 10 | BR | ALL |
