Instrument Pack
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0230 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack
Female
NATURAL

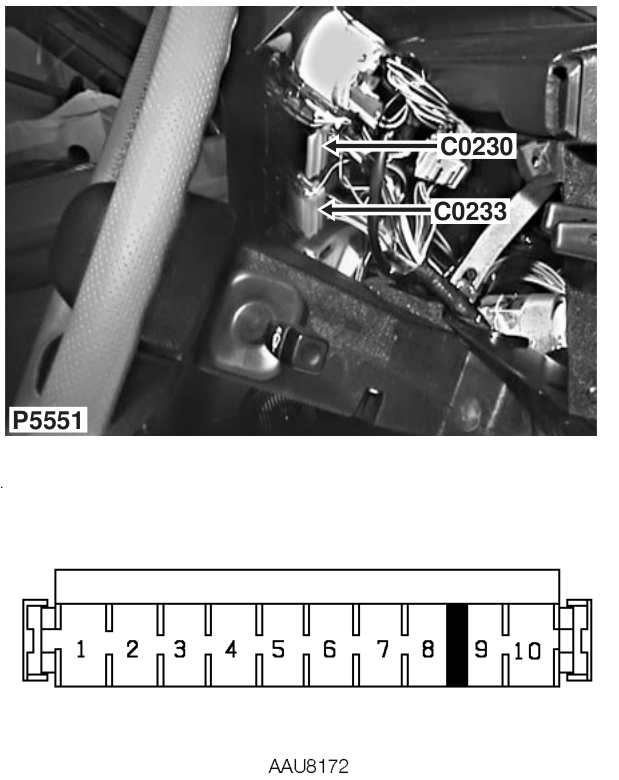

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | RY | ALL |
| 3 | LGP | ALL |
| 4 | B | ALL |
| 5 | GR | ALL |
| 6 | UW | ALL |
| 8 | RO | ALL |
