Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0275 › Female
ConnectorsFemale

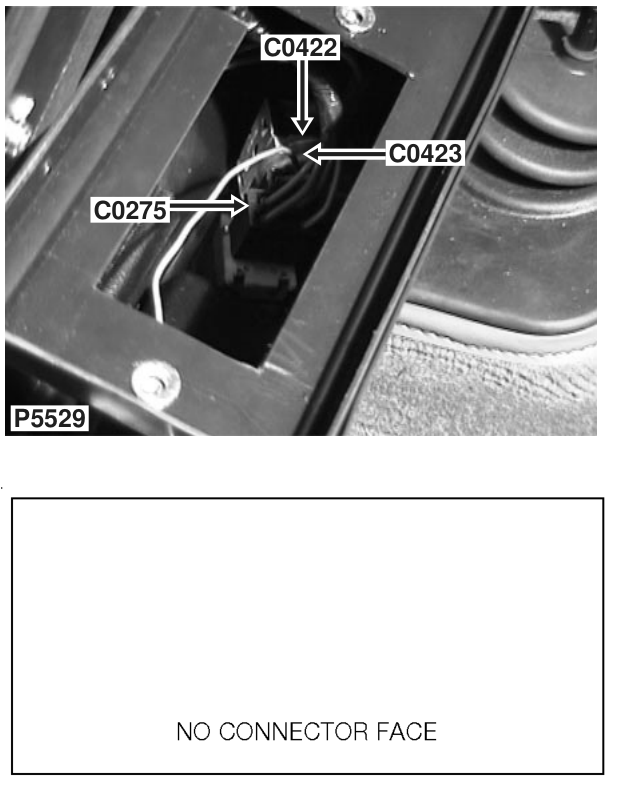

Switch pack - Air conditioning (A/C)
Female
BLACK
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | R | ALL |
| 3 | U | ALL |
| 4 | UY | ALL |
| 5 | N | ALL |
