Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0277 › Male
ConnectorsMale

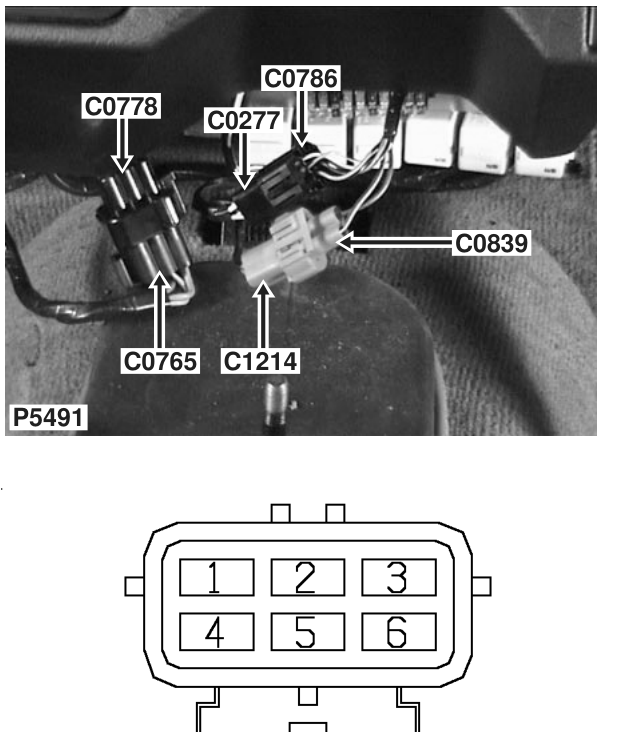

Main harness to air conditioning (A/C) harness
Male
BLACK
Behind fascia trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | SB | ALL |
| 3 | YW | ALL |
| 4 | UB | ALL |
| 5 | UW | ALL |
| 6 | SU | ALL |
