Relay - Headlamp
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0282 › Relay - Headlamp
ConnectorsRelay - Headlamp
Relay - Headlamp
Female
YELLOW

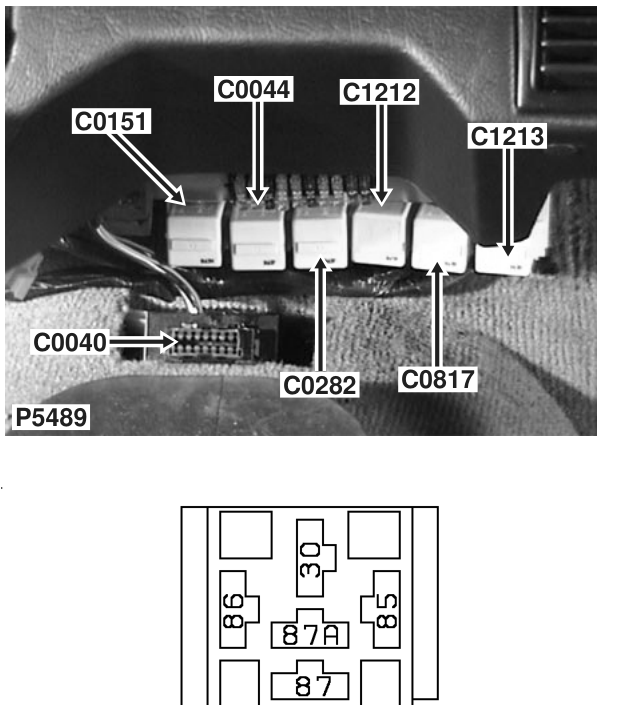

Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 30 | U | ALL |
| 85 | WG | ALL |
| 86 | B | ALL |
| 87 | UY | ALL |
