Header
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

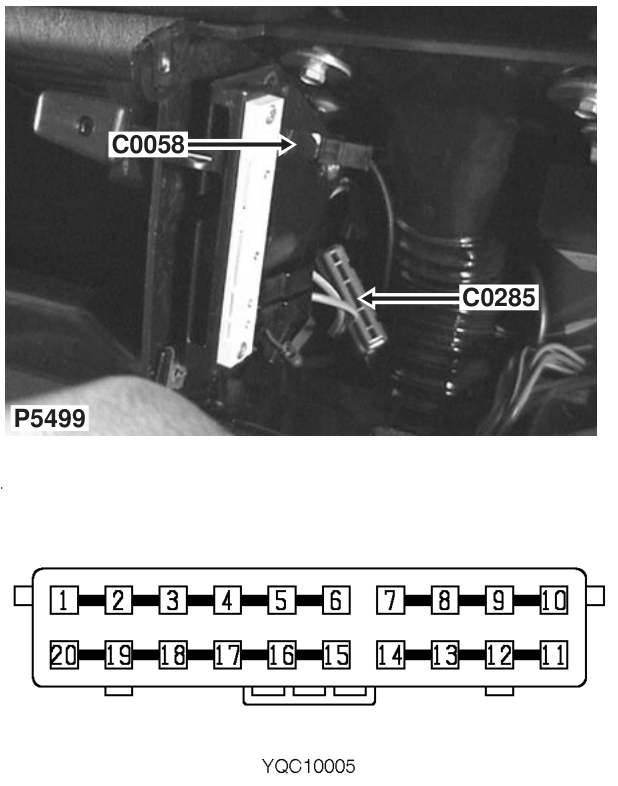

- C0285 › Header
ConnectorsHeader
Header
Female
BLUE
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | G | ALL |
| 3 | G | ALL |
| 4 | G | ALL |
| 5 | G | ALL |
| 6 | G | ALL |
| 7 | PB | ALL |
| 8 | PB | ALL |
| Cav | Col | CCT |
|---|---|---|
| 9 | PB | ALL |
| 10 | PB | ALL |
| 15 | WG | ALL |
| 16 | WG | ALL |
| 17 | WG | ALL |
| 18 | WG | ALL |
| 19 | WG | ALL |
| 20 | WG | ALL |
