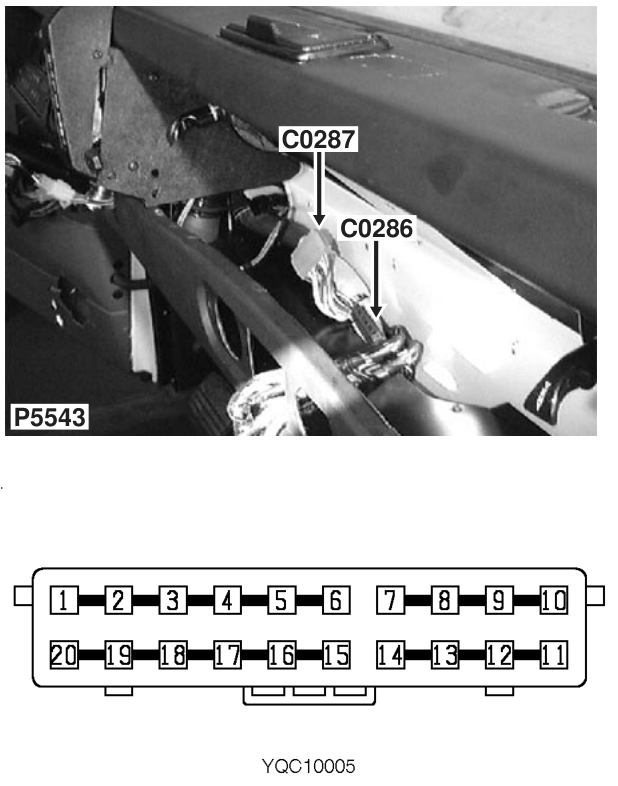

- C0286 › Header
ConnectorsHeader
Header
Female
BLUE
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | RO | ALL |
| 3 | RO | ALL |
| 4 | RO | ALL |
| 5 | RO | ALL |
| 6 | RO | ALL |
| 7 | GW | ALL |
| 8 | GW | ALL |
| 9 | GW | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | GW | ALL |
| 11 | GR | ALL |
| 12 | GR | ALL |
| 13 | GR | ALL |
| 14 | GR | ALL |
| 16 | P | ALL |
| 17 | P | ALL |
| 18 | P | ALL |
| 19 | P | ALL |
