- C0287 › Header
ConnectorsHeader
Header
Female
GREY

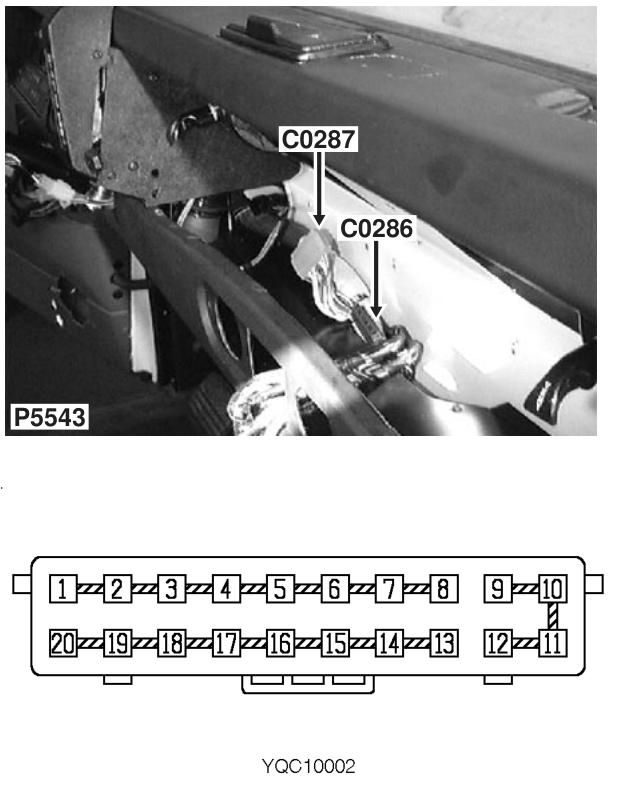

Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | B | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | B | ALL |
| 12 | B | ALL |
| 13 | B | ALL |
| 15 | B | ALL |
| 17 | B | ALL |
| 18 | B | ALL |
| 19 | B | ALL |
| 20 | B | ALL |
