Header
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

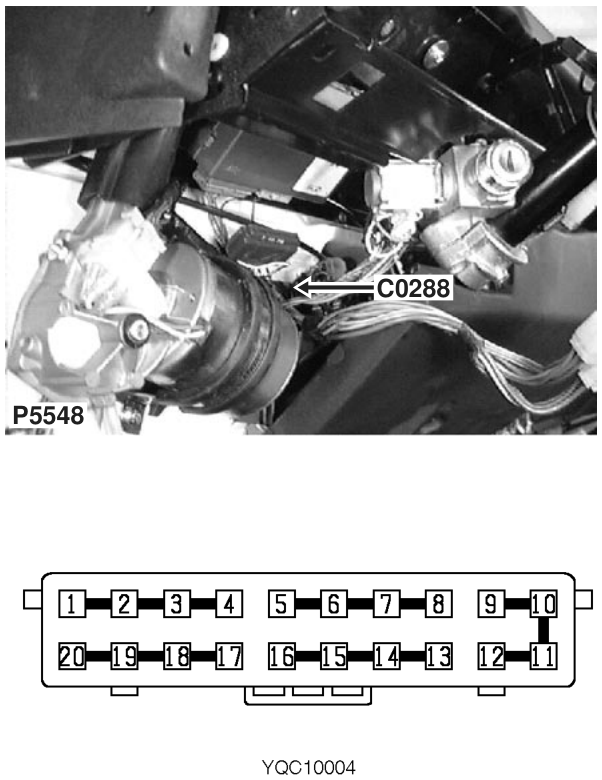

- C0288 › Header
ConnectorsHeader
Header
Female
YELLOW
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WY | ALL |
| 2 | WY | ALL |
| 3 | WY | ALL |
| 4 | WY | ALL |
| 5 | PW | ALL |
| 6 | PW | ALL |
| 7 | PW | ALL |
| 9 | UY | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | UY | ALL |
| 11 | UY | ALL |
| 13 | UW | ALL |
| 14 | UW | ALL |
| 15 | UW | ALL |
| 17 | PU | ALL |
| 18 | PU | ALL |
| 19 | PU | ALL |
