Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0431 › Female
ConnectorsFemale

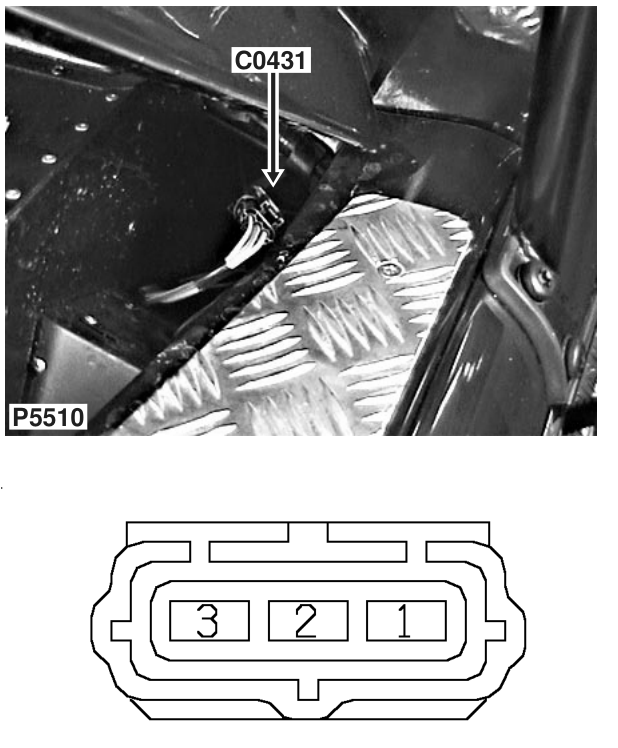

Heater harness to main harness
Female
BLACK
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | GS | ALL |
| 2 | GY | ALL |
| 3 | PG | ALL |
