Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0448 › Female
ConnectorsFemale

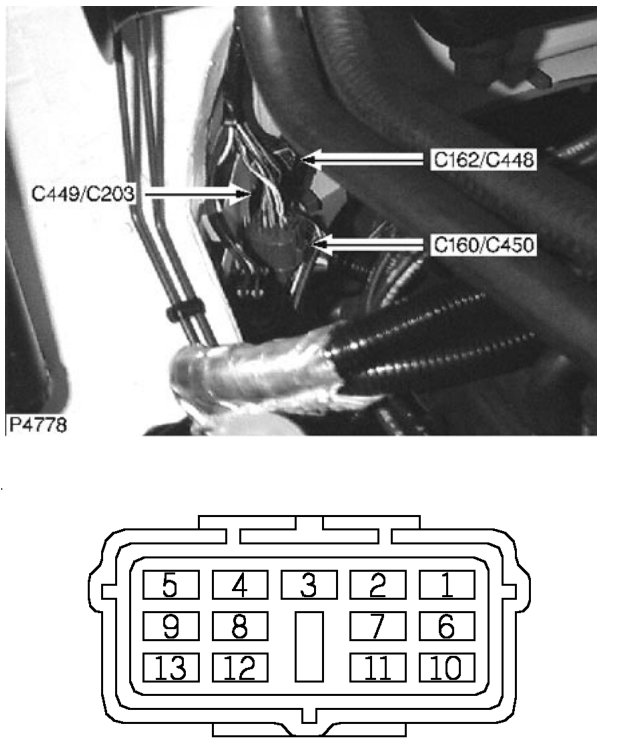

Main harness to engine harness
Female
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GU | ALL |
| 2 | WS | ALL |
| 3 | WN | ALL |
| 4 | GN | ALL |
| 5 | YK | ALL |
| 6 | OB | ALL |
| 7 | YB | ALL |
| 8 | BO | ALL |
| 9 | BS | ALL |
| 10 | BY | ALL |
| 11 | RS | ALL |
| 12 | NY | ALL |
| 13 | G | ALL |
