Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0580 › Female
ConnectorsFemale
Fuse box - Passenger compartment
Female
BLACK

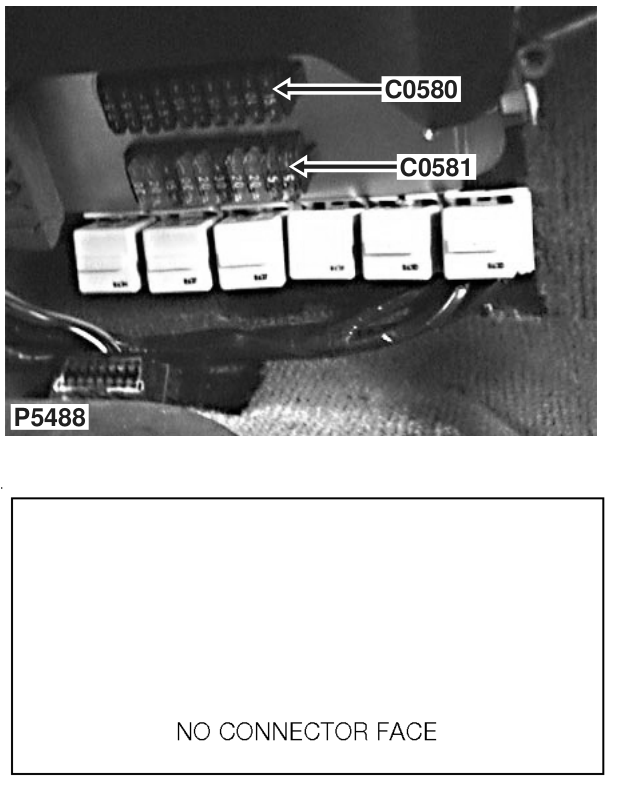

Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | W | ALL |
| 2 | WG | ALL |
| 3 | N | ALL |
| 4 | P | ALL |
| 6 | P | ALL |
| 7 | WO | ALL |
| 8 | PG | ALL |
| 10 | WK | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | U | ALL |
| 12 | UP | ALL |
| 13 | UR | ALL |
| 14 | UB | ALL |
| 16 | UK | ALL |
| 17 | UW | ALL |
| 18 | UO | ALL |
| 20 | US | ALL |
