Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0581 › Female
ConnectorsFemale

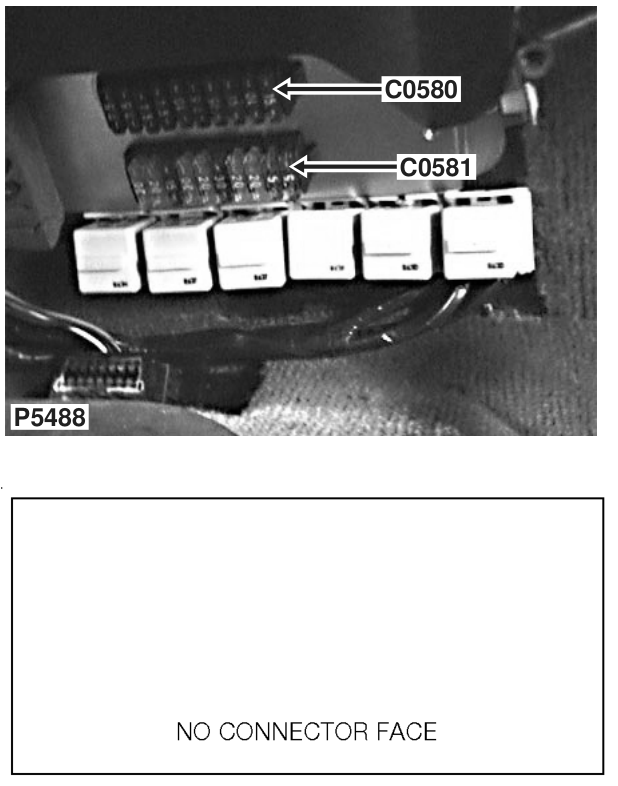

Fuse box - Passenger compartment
Female
BLACK
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | R | ALL |
| 2 | RB | ALL |
| 4 | RO | ALL |
| 5 | NP | ALL |
| 6 | P | ALL |
| 10 | NS | ALL |
| 12 | NW | ALL |
| 13 | W | ALL |
| 14 | G | ALL |
| 16 | G | ALL |
| 18 | GO | ALL |
| 20 | WG | ALL |
