Female

Make

Land Rover

Model

Defender V8i Electrical Library

Section

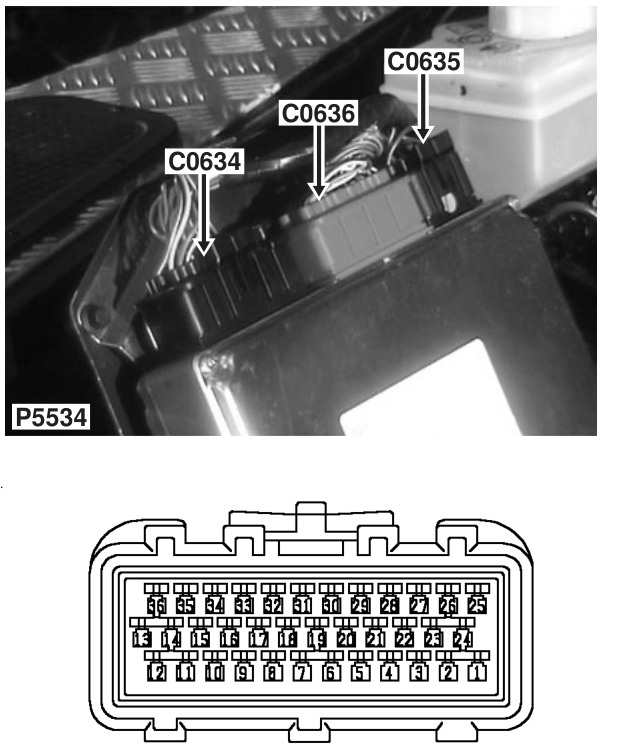

C0634 › Female

ConnectorsFemale

Engine control module (ECM)

Female

BLACK

RH side of engine compartment

Cav	Col	CCT
1	BS	ALL
3	GW	ALL
11	YB	ALL
13	YU	ALL
15	US	ALL
16	RG	ALL
17	YS	ALL
18	YK	ALL
19	SY	ALL

Cav	Col	CCT
21	WO	ALL
22	RS	ALL
24	UP	ALL
30	YN	ALL
32	YR	ALL
33	YG	ALL
34	GW	ALL
35	OR	ALL
36	YW	ALL
