Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0635 › Female
ConnectorsFemale

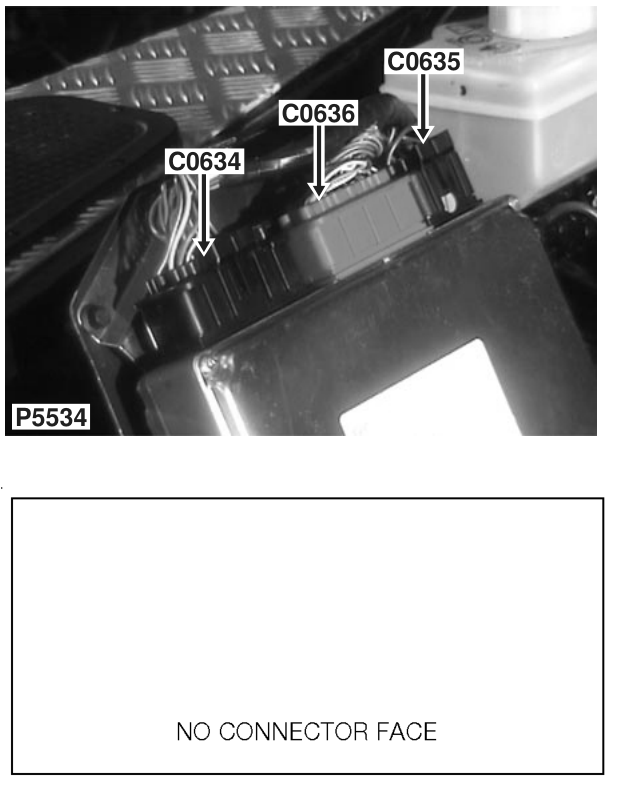

Engine control module (ECM)
Female
BLACK
RH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | WK | ALL |
| 4 | R | ALL |
| 5 | B | ALL |
| 7 | NO | ALL |
| 8 | WG | ALL |
| 9 | B | ALL |
| 10 | B | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | G | ALL |
| 12 | N | ALL |
| 13 | WU | ALL |
| 14 | WB | ALL |
| 15 | WY | ALL |
| 16 | B | ALL |
| 17 | UR | ALL |
