Female

Make

Land Rover

Model

Defender V8i Electrical Library

Section

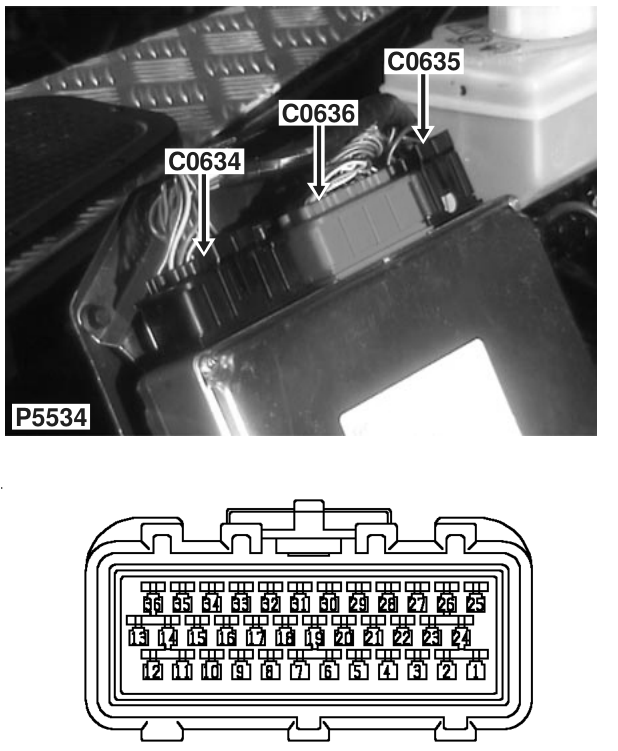

C0636 › Female

ConnectorsFemale

Engine control module (ECM)

Female

RED

RH side of engine compartment

Cav	Col	CCT
2	SU	ALL
7	GB	ALL
10	RB	ALL
11	O	ALL
12	Y	ALL
13	SLG	ALL
14	G	ALL
15	YLG	ALL
16	UG	ALL
18	OB	ALL
20	WK	ALL

Cav	Col	CCT
23	WLG	ALL
26	B	ALL
27	YK	ALL
28	YB	ALL
29	PB	ALL
32	RB	ALL
33	OG	ALL
34	GR	ALL
35	SW	ALL
36	RB	ALL
