Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

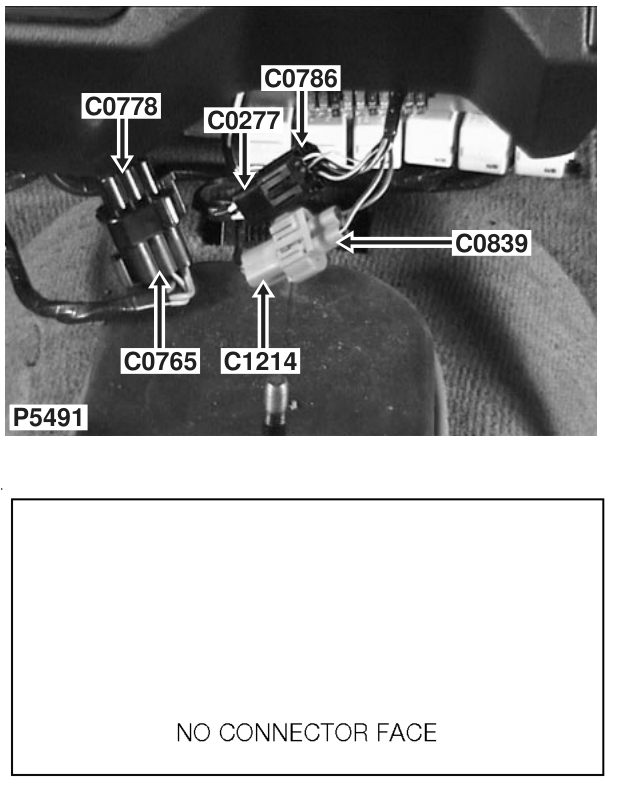

- C0778 › Female
ConnectorsFemale
Harness - Air conditioning (A/C)
Female
BLACK
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | U | ALL |
| 3 | R | ALL |
| 4 | N | ALL |
| 5 | UR | ALL |
| 6 | B | ALL |
