Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0786 › Female
ConnectorsFemale

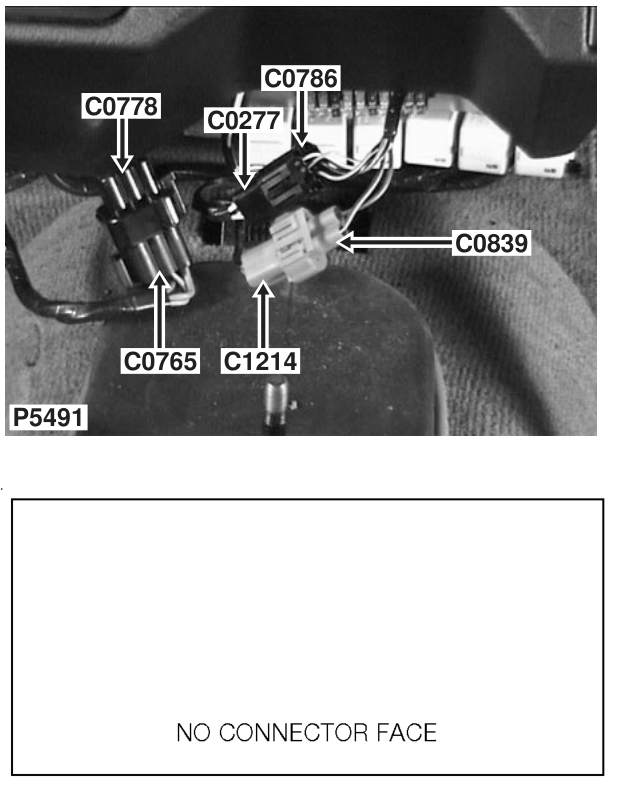

Main harness to air conditioning (A/C) harness
Female
BLACK
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | GW | ALL |
| 3 | YB | ALL |
| 4 | BS | ALL |
| 5 | PB | ALL |
| 6 | NO | ALL |
