Coolant requirements drain and refill (page 2 of 2)

NOTE: It is not possible to drain all coolant retained in heater system.

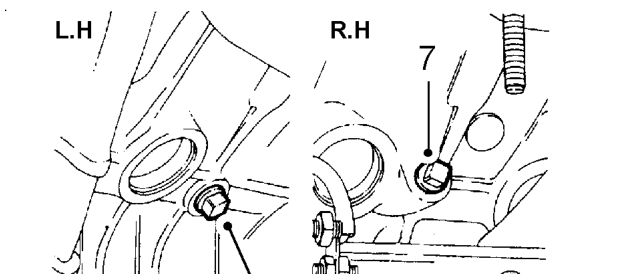

7. Remove engine drain plugs beneath exhaust manifolds and allow coolant to drain from engine.

Refill

1. Fit drain plugs to engine.
2. Connect hose to coolant pump and secure with clip.
3. Fit viscous coupling. See Repair, viscous coupling
4. Pour correct solution of water and anti-freeze into expansion tank until radiator is full.
5. Start engine and run until normal operating temperature is reached.
6. Top up coolant level as necessary.
7. Fit NEW ’O’ ring to radiator filler plug.
8. Fit radiator filler plug and tighten to 6 Nm (4 lbf.ft).
9. Fit expansion tank filler cap.
10. Allow engine to cool and check coolant level.
11. Top-up expansion tank until level reaches seam.
12. Remove container.
