RADIATOR

Service repair no - 26.40.01

Remove

  1. Disconnect battery negative lead.
  2. Drain cooling system. See Adjustment, drain and refill

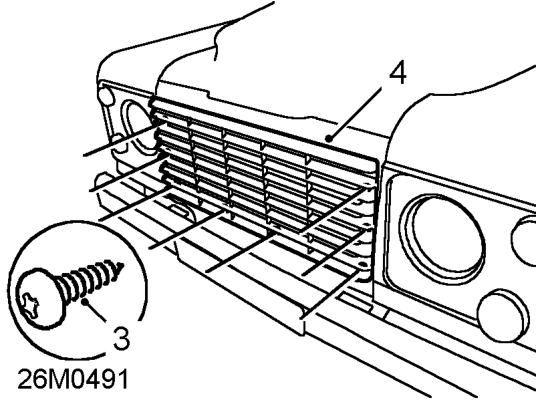

Radiator – Drain cooling system. See Adjustment, drain and refill
  1. Remove 8 screws securing front grille to body.
  2. Remove front grille.

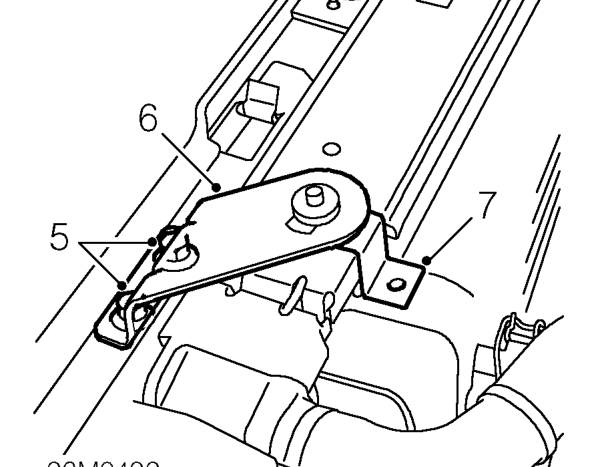

Radiator – Remove front grille.
  1. Remove fan cowl.
  2. Remove 4 bolts securing radiator top mountings to bonnet locking panel and collect nuts.
  3. Remove radiator top mountings.
  4. Remove fan cowl upper mounting brackets.

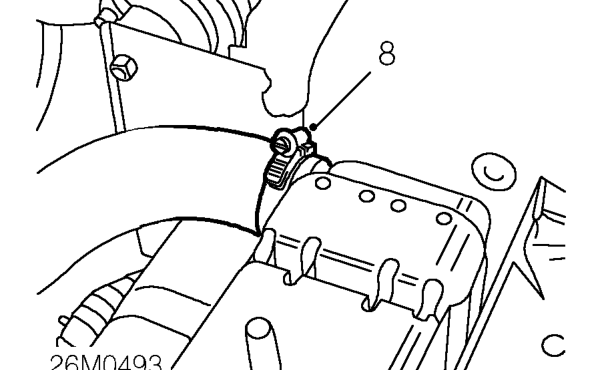

Radiator – Remove fan cowl upper mounting brackets.
  1. Loosen clip and disconnect top hose from radiator.

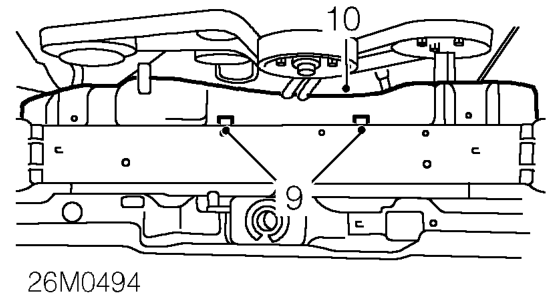

Radiator – Loosen clip and disconnect top hose from radiator.
  1. Remove 2 clips securing fan cowl to radiator.
