Emission controlEvap canister and purge control valve

EVAP CANISTER AND PURGE CONTROL VALVE

Service repair no - 17.15.13

Remove

  1. Depress tags securing purge pipe to plenum chamber.
  2. Disconnect purge pipe from plenum chamber.

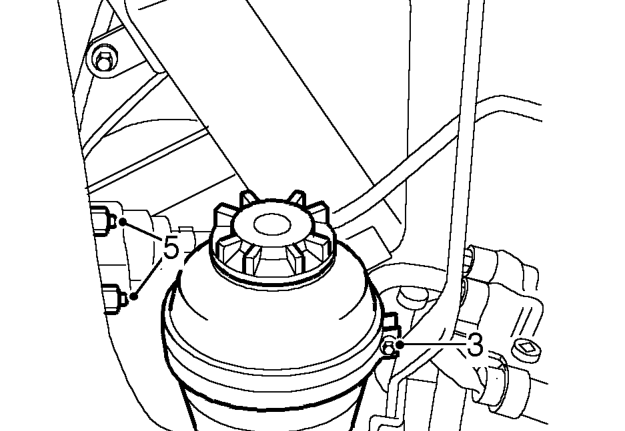

Evap canister and purge control valve – Disconnect purge pipe from plenum chamber.
  1. Remove PAS reservoir clamp bracket bolt.
  2. Open clamp and release reservoir from bracket.
  3. Remove 2 nuts securing bracket to wing. Do not carry out further dismantling if component is removed for access only.

Refit

  1. Fit bracket to purge valve.
  2. Position assembly, connect vapour separator
  3. Locate purge valve bracket and expansion hose
  4. Fit and tighten nuts.
  5. Locate PAS reservoir to bracket clip, compress
  6. Connect purge pipe to plenum chamber.
  7. Secure purge pipe to coolant hose with clips.

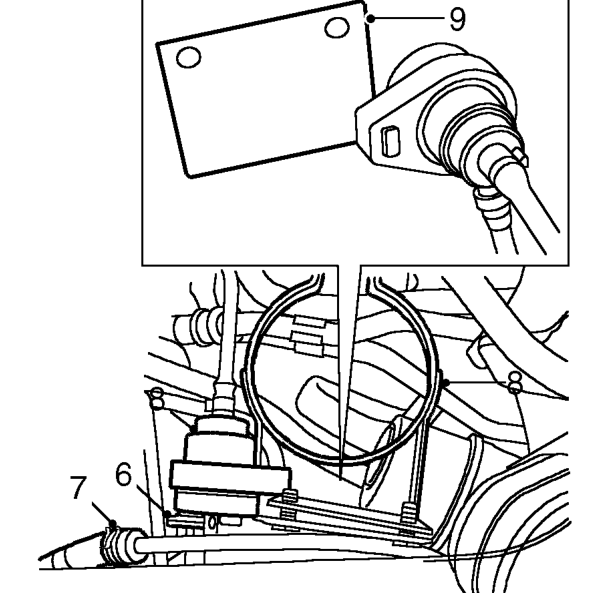

Evap canister and purge control valve – Secure purge pipe to coolant hose with clips.
  1. Release bracket from wing and disconnect multiplug from purge valve.
  2. Release clip and disconnect fuel tank vapour separator pipe from canister pipe.
  3. Move PAS reservoir aside, release and remove charcoal canister, purge valve and bracket assembly.
  4. Remove bracket from purge valve.

pipe to canister pipe and secure with clip.

clip to studs and locate assembly to wing.

clip, fit bolt and tighten to 8 Nm (6 lb ft).
