25 Nm (19 lbf.ft).

7. Using tool LRT-57-018 release drop arm from Refit drag link.
8. Loosen, but do not remove, nut securing tie bar 24. Clean mating faces of steering box and chassis to mounting arm.
9. Remove 2 bolts securing tie bar to steering box. 25. With assistance, position steering box to vehicle,
10. Move tie bar aside.
11. Position container to collect any fluid spillage. 26. Fit bolts and tab washers securing steering box
12. Lower vehicle.
13. Remove filler cap from power steering fluid 27. Connect steering column to steering box. reservoir. 28. Tighten universal joint pinch bolts to

29. Remove plugs from steering box and pipes.
30. Connect feed pipe to steering box and tighten
31. Connect return pipe to steering box and tighten
32. Fit fluid reservoir cap.
33. Raise vehicle on ramp.
34. Position tie bar to steering box and loosely fit
35. Tighten nut securing tie bar to mounting arm to
36. Tighten bolts securing tie bar to steering box to

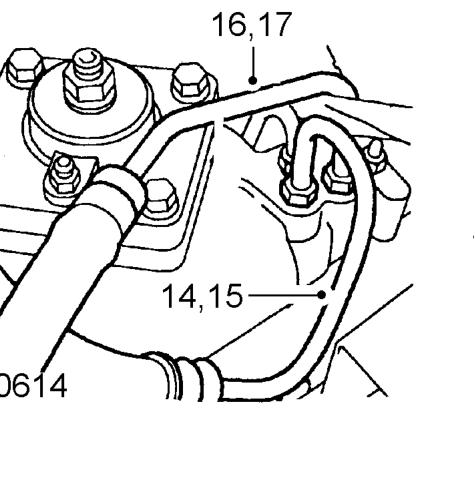

14. Loosen union securing feed pipe to steering box.
15. Disconnect feed pipe from steering box. 37. Fit drop arm to drag link and fit castellated nut.
16. Loosen union securing return pipe to steering 38. Tighten castellated nut to box.
17. Disconnect return pipe from steering box. 39. Connect steering damper to drag link.
40. Fit and tighten bolt securing damper.

CAUTION: Plug the connections. 41. Fit Panhard rod.

42. Lower vehicle.
18. Centralise steering. See Adjustment, power 43. Bleed power steering system. steering box - centralise
19. Remove pinch bolt securing steering column 44. Test drive vehicle using both full locks to settle universal joint to steering box.
20. Loosen pinch bolt securing universal joint to steering column.
21. Slide universal joint up steering column and release from steering box.
22. Remove 4 bolts securing steering box to chassis side member and collect 2 tab washers. 45. Drive vehicle in a straight line on level ground
23. With assistance, lower steering box from vehicle and remove. 46. Tighten nut securing tie bar to mounting to
47. Tighten bolts securing tie bar to steering box to
48. Ensure steering wheel is correctly aligned when
49. Road test vehicle.

side member.

ensuring locating peg is engaged.

to chassis and tighten bolts to 80 Nm (60 lbf.ft).

25 Nm ( 19 lbf.ft).

union to 15 Nm (11 lbf.ft).

union to 20 Nm (15 lbf.ft).

bolts and washers.

80 Nm ( 60 lbf.ft) and then back-off one complete turn.

81 Nm (60 lbf.ft) and then back-off one complete turn.

40 Nm (30 lbf.ft) and fit NEW split pin.

See FRONT SUSPENSION, Repair, Panhard rod; Refit

See Adjustment, power steering system - bleed

steering components. If possible, drive vehicle over uneven ground and include harsh braking.

WARNING: Do not test drive vehicle on public highway.

and stop. 110 Nm (81 lbf.ft).

81 Nm (60 lbf.ft).

wheels are positioned straight ahead.
