Land Rover Defender V8i Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Power steering pump

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair › Power steering pump
SteeringPower steering pump · page 1 of 2

POWER STEERING PUMP

Service repair no - 57.20.14

Remove

  1. Disconnect battery negative lead.
  2. Remove drive belt. See ELECTRICAL, Repair, Auxiliary drive belt
  3. Position container to collect any fluid spillage.

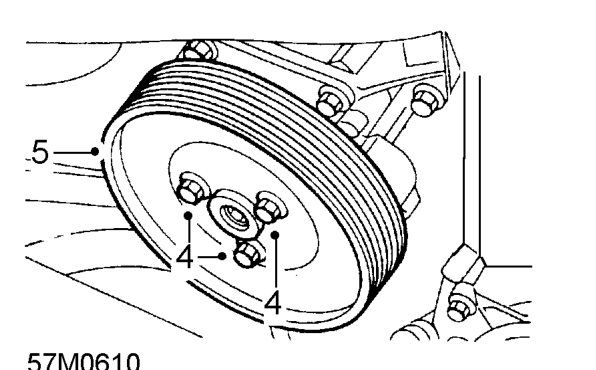

Power steering pump – Position container to collect any fluid spillage.
  1. Using an Allen key to restrain PAS pump pulley, remove 3 bolts securing pulley to pump.
  2. Remove PAS pump pulley.
  3. Remove 3 bolts securing PAS pump to engine.
  4. Remove PAS pump and collect engine lifting

Do not carry out further dismantling if component is removed for access only.

  1. Remove 5 bolts securing clamping bracket to
  2. Remove clamping bracket from pump and fit to
  3. Tighten bolts securing clamping bracket to pump

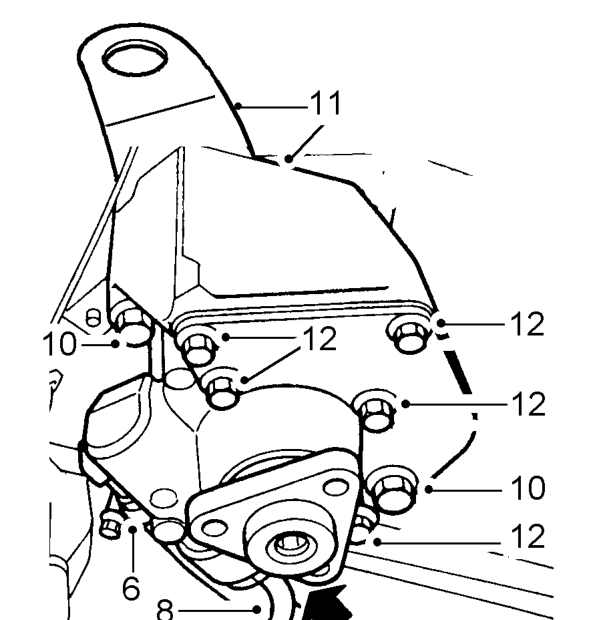

Power steering pump – Tighten bolts securing clamping bracket to pump
  1. Loosen clip securing PAS hose to pump.
  2. Disconnect hose from pump.
  3. Loosen union securing PAS pipe to pump.
  4. Disconnect PAS pipe from pump.

CAUTION: Plug the connections.

bracket.

pump.

new pump.

to 9 Nm (7 lbf.ft).
