Anti-lock brake systemAnti-lock brake system – circuit diagram

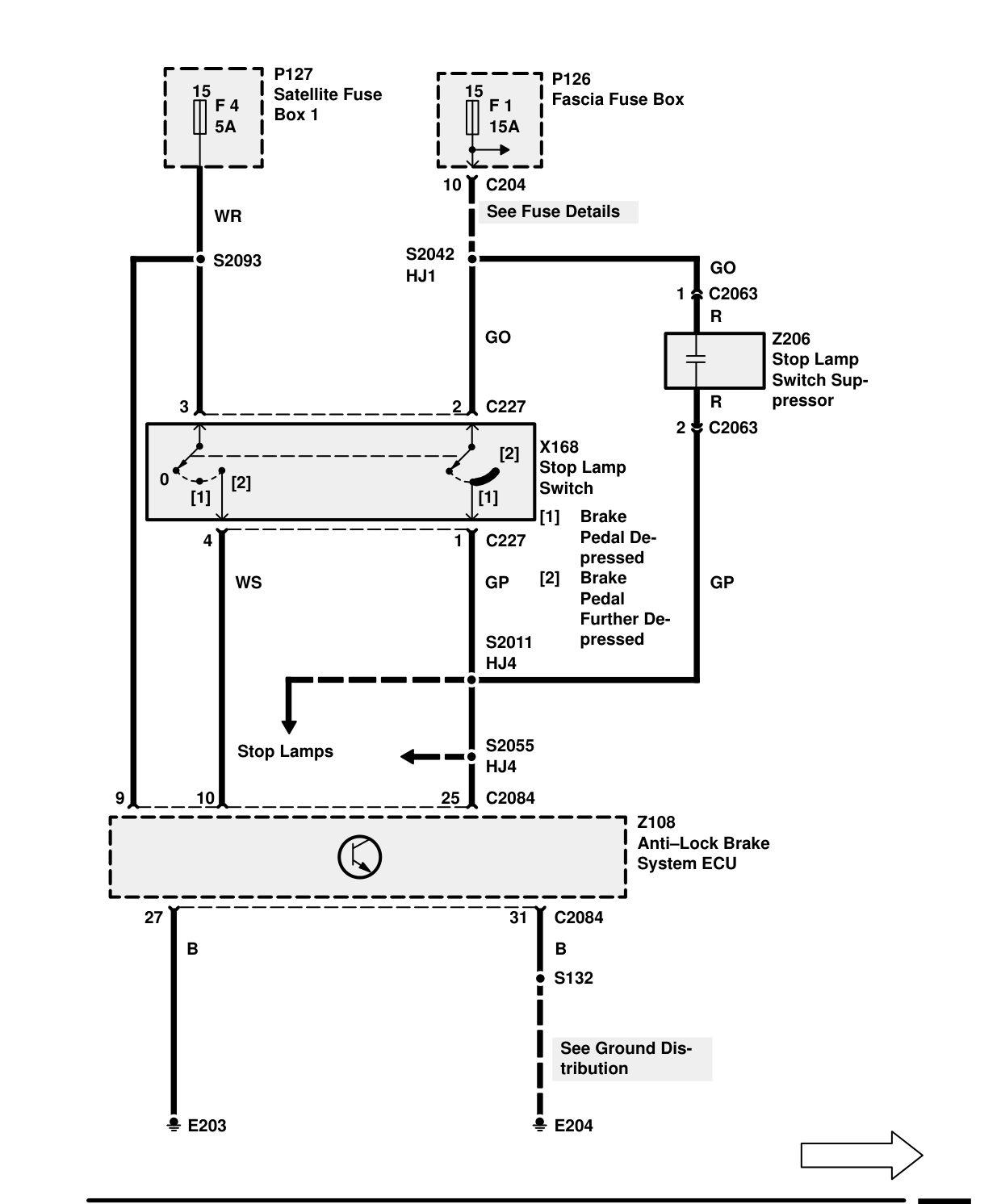

ANTI-LOCK BRAKE SYSTEM – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box F 1
- P127 Satellite Fuse Box 1
- X168 Stop Lamp Switch
- Z108 Anti-Lock Brake System ECU
- Z206 Stop Lamp Switch Suppressor
