Headlamps (Japan) – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1996

Section

Circuit diagram › Headlamps (Japan) – circuit diagram

Headlamps (Japan)Headlamps (Japan) – circuit diagram

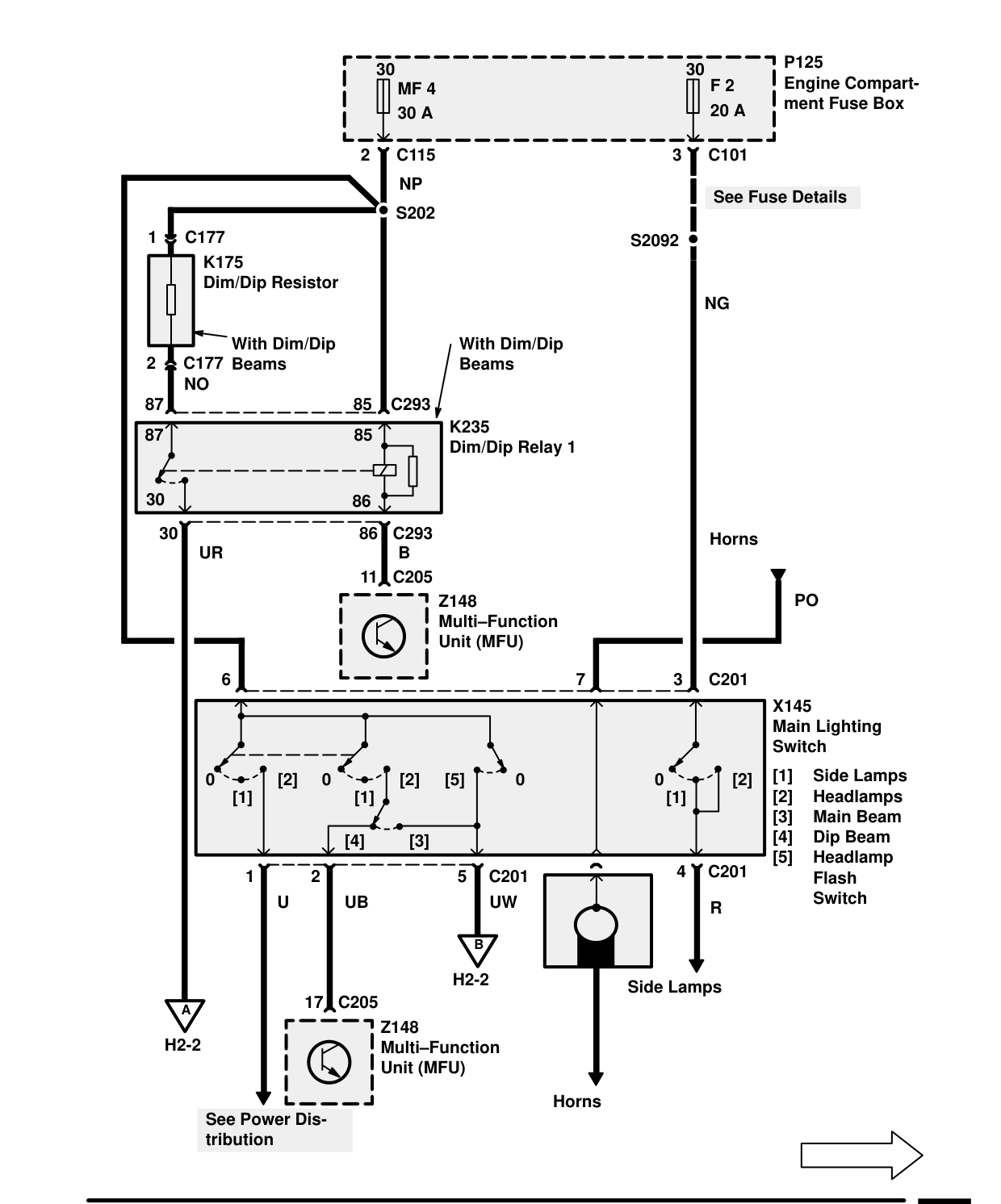

HEADLAMPS (JAPAN) – CIRCUIT DIAGRAM

Components on this page

• K175 Dim/Dip Resistor
• K235 Dim/Dip Relay 1 87
• P125 Engine Compartment Fuse Box
• X145 Main Lighting Switch
• Z148 Multi-Function Unit (MFU)

23 General
