Stop lamps – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Stop lamps – circuit diagram
Stop lampsStop lamps – circuit diagram

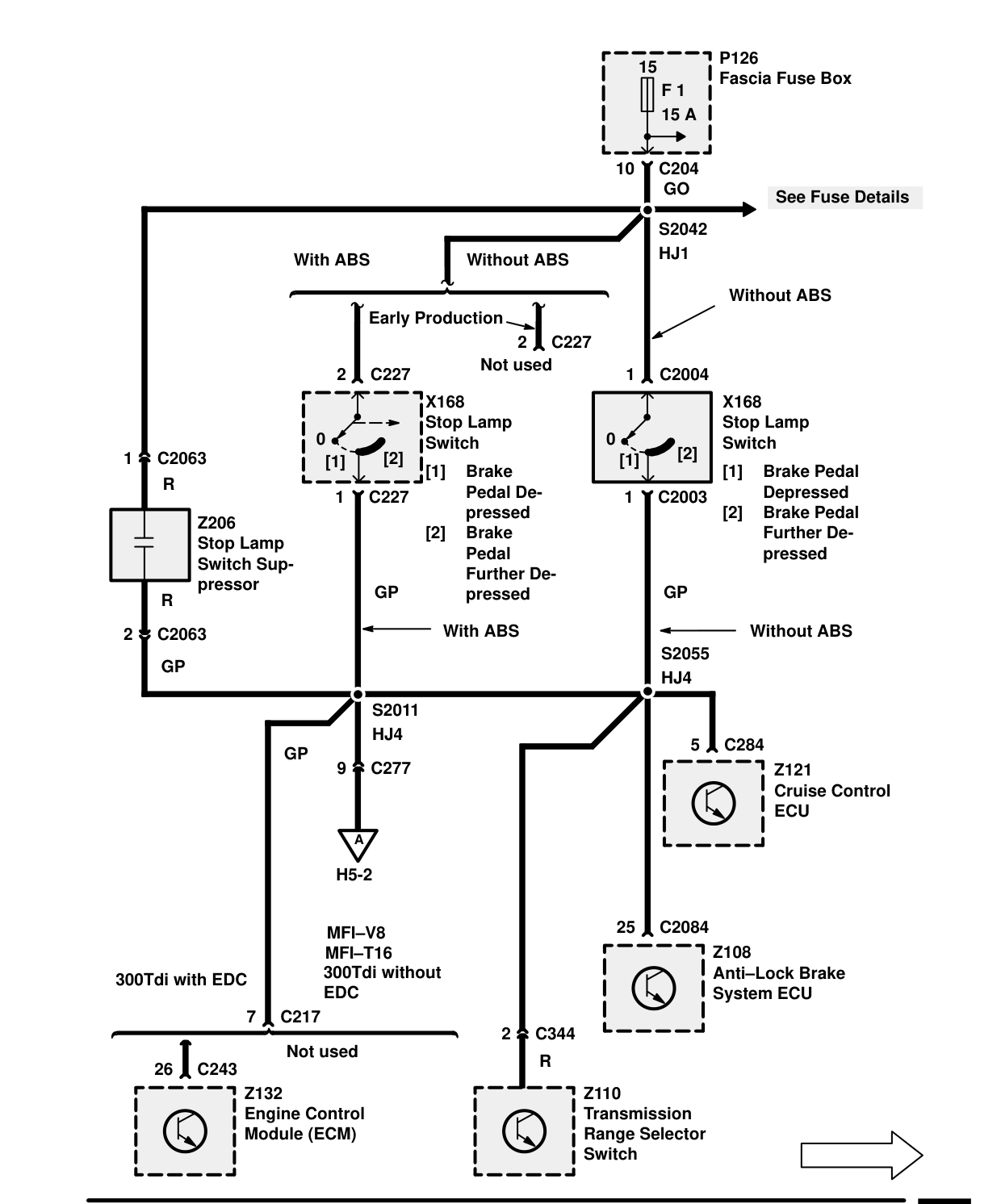

STOP LAMPS – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- X168 Stop Lamp Switch
- Z108 Anti-Lock Brake System ECU
- Z110 Transmission Range Selector Switch
- Z121 Cruise Control ECU
- Z132 Engine Control Module (ECM)
- Z206 Stop Lamp Switch Suppressor
