Compressor controls – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Compressor controls – circuit diagram
‹ Prev Compressor controls – compressor controls (300Tdi with EDC)Next › Compressor controls – compressor controls (with rear A/C)
Compressor controlsCompressor controls – circuit diagram

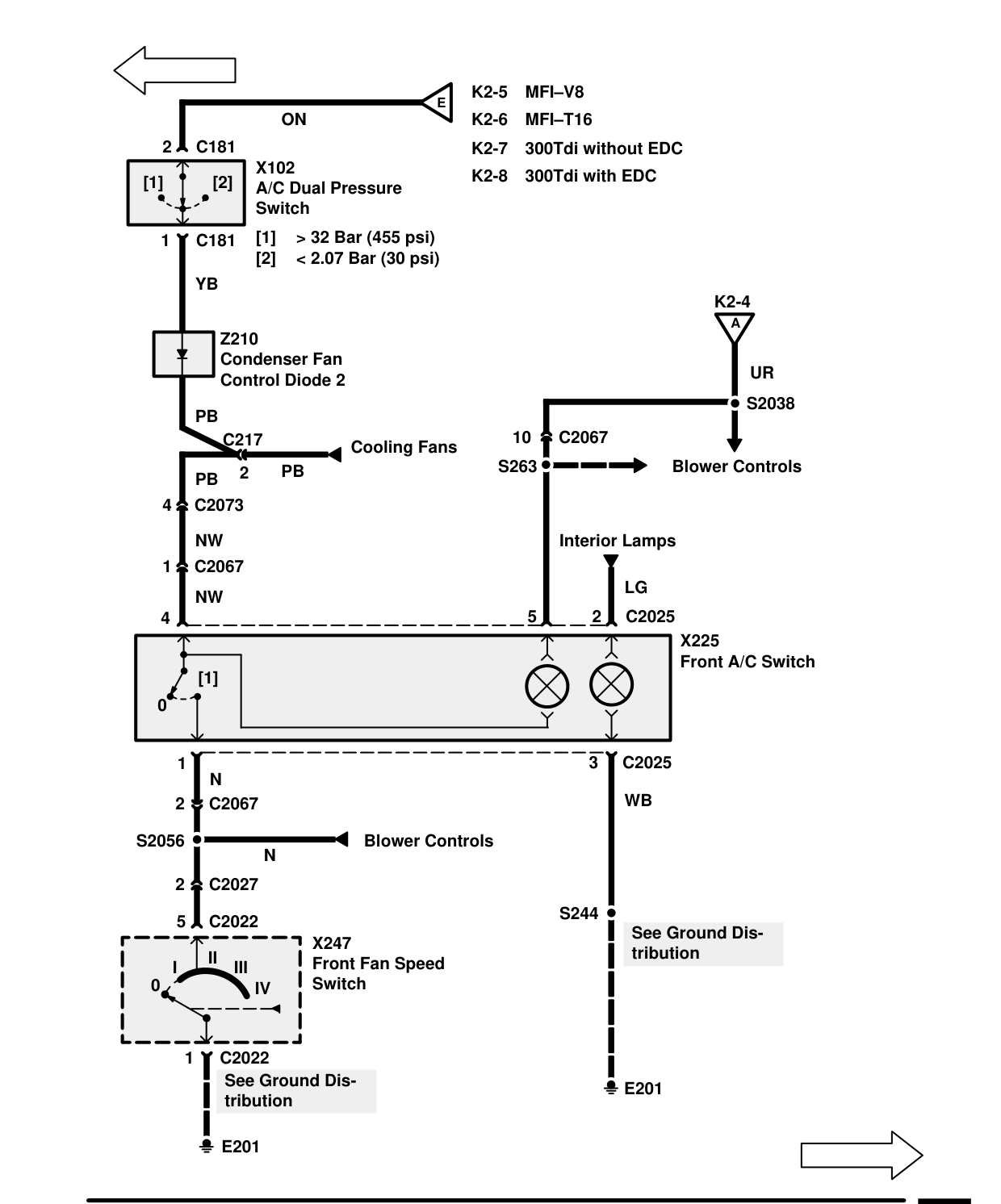

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM
Components on this page
- S263 Blower Controls
- X102 A/C Dual Pressure Switch
- X225 Front A/C Switch
- X247 Front Fan Speed Switch
- Z210 Condenser Fan Control Diode 2
