Land Rover Discovery Electrical Troubleshooting Manual (1996)22 · Headlamps (EXCEPT Japan)
22 · General

Headlamps (except Japan) – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1996
Section
Circuit diagram › Headlamps (except Japan) – circuit diagram
Headlamps (EXCEPT Japan)Headlamps (except Japan) – circuit diagram

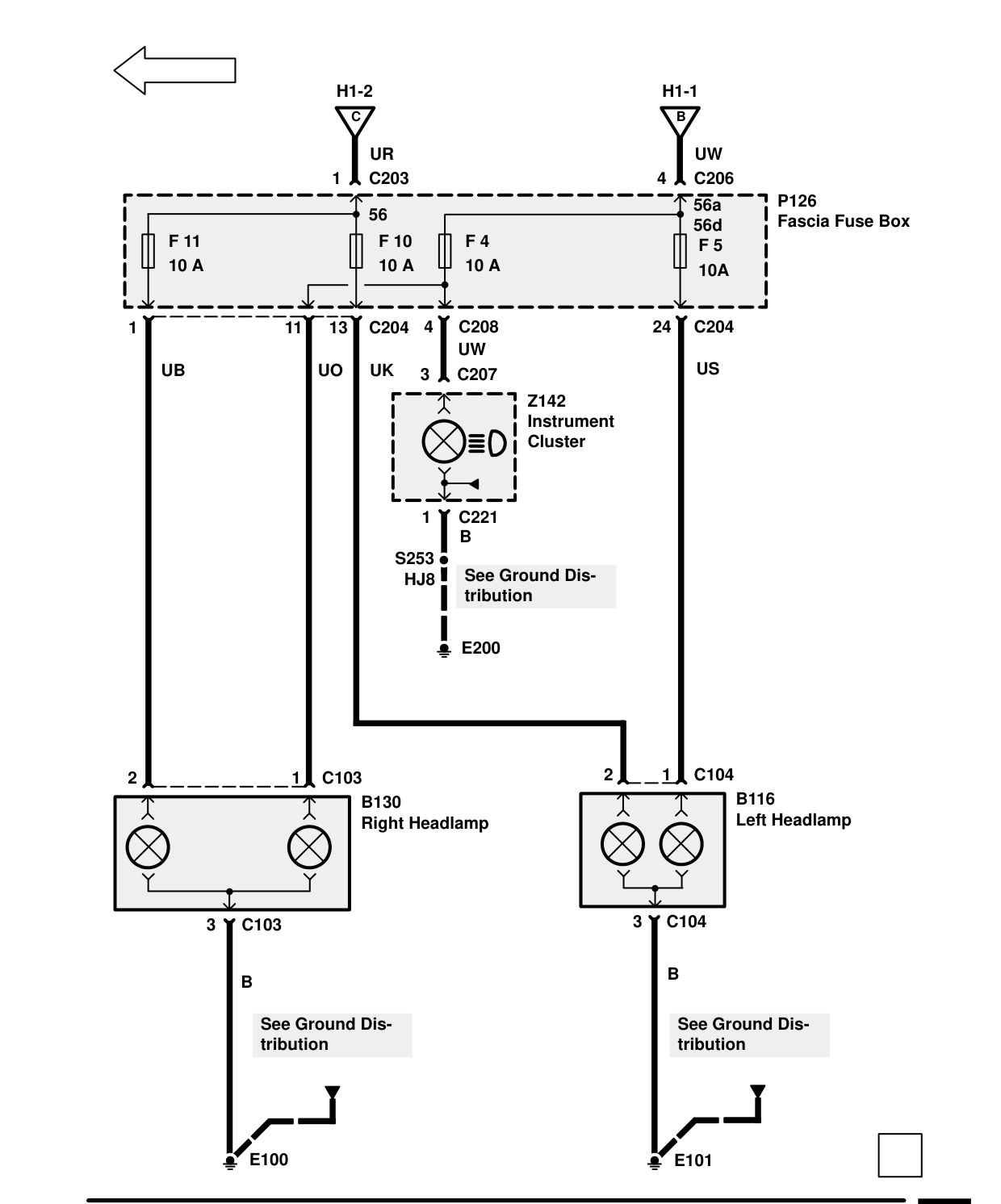

HEADLAMPS (EXCEPT JAPAN) – CIRCUIT DIAGRAM

Headlamps (Except Japan) – Circuit Diagram

Components on this page

  • B130 Right Headlamp
  • P126 Fascia Fuse Box
  • Z142 Instrument Cluster
