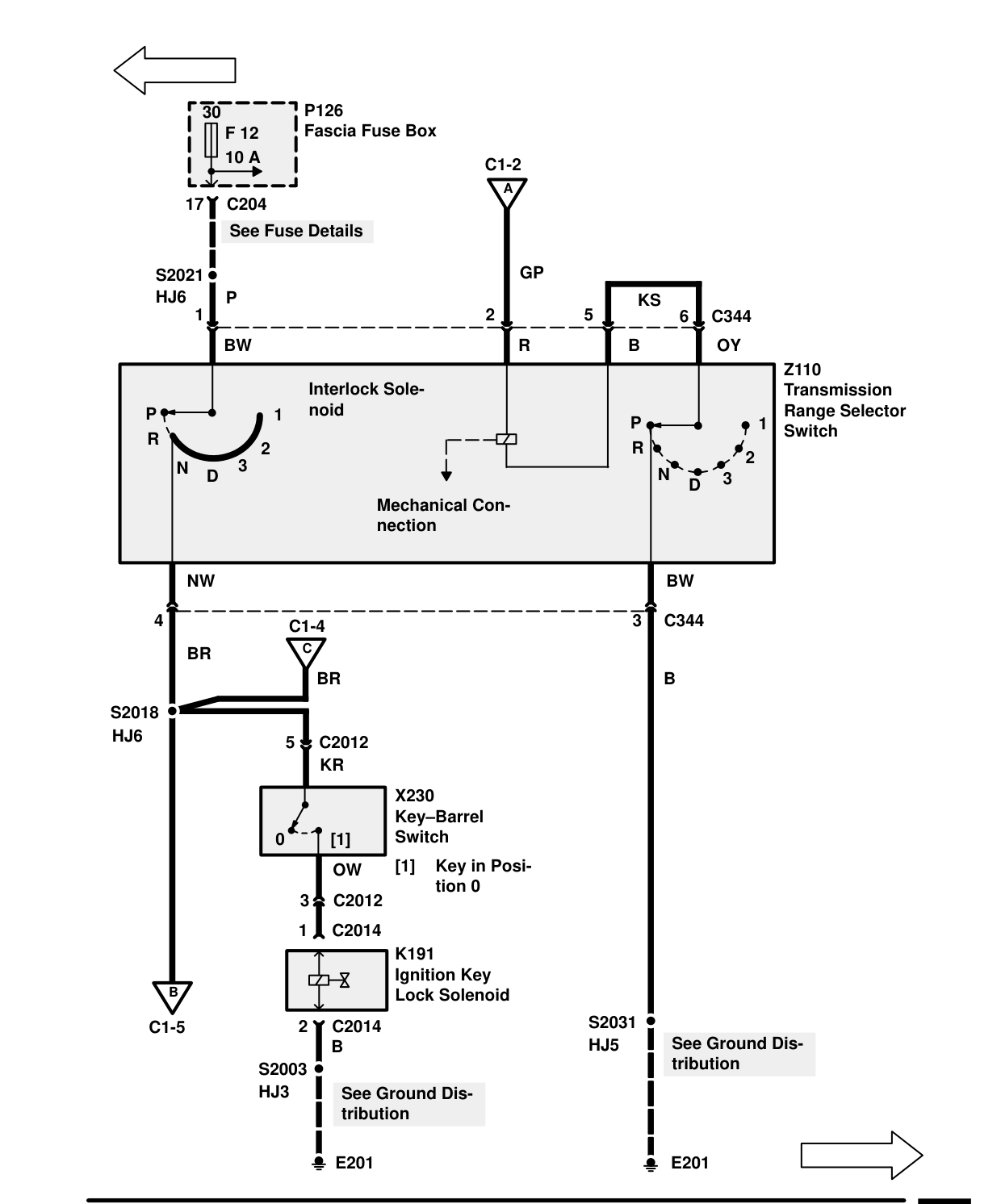

IGNITION AND SHIFT INTERLOCK – CIRCUIT DIAGRAM
Components on this page
- K191 Ignition Key Lock Solenoid
- P126 Fascia Fuse Box
- X230 Key-Barrel Switch
- Z110 Transmission Range Selector Switch
