Multi-function unit (MFU) – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Multi-function unit (MFU) – circuit diagram
‹ Prev Multi-function unit (MFU) – circuit diagramNext › Multi-function unit (MFU) – circuit diagram
Multi-function unit (MFU)Multi-function unit (MFU) – circuit diagram

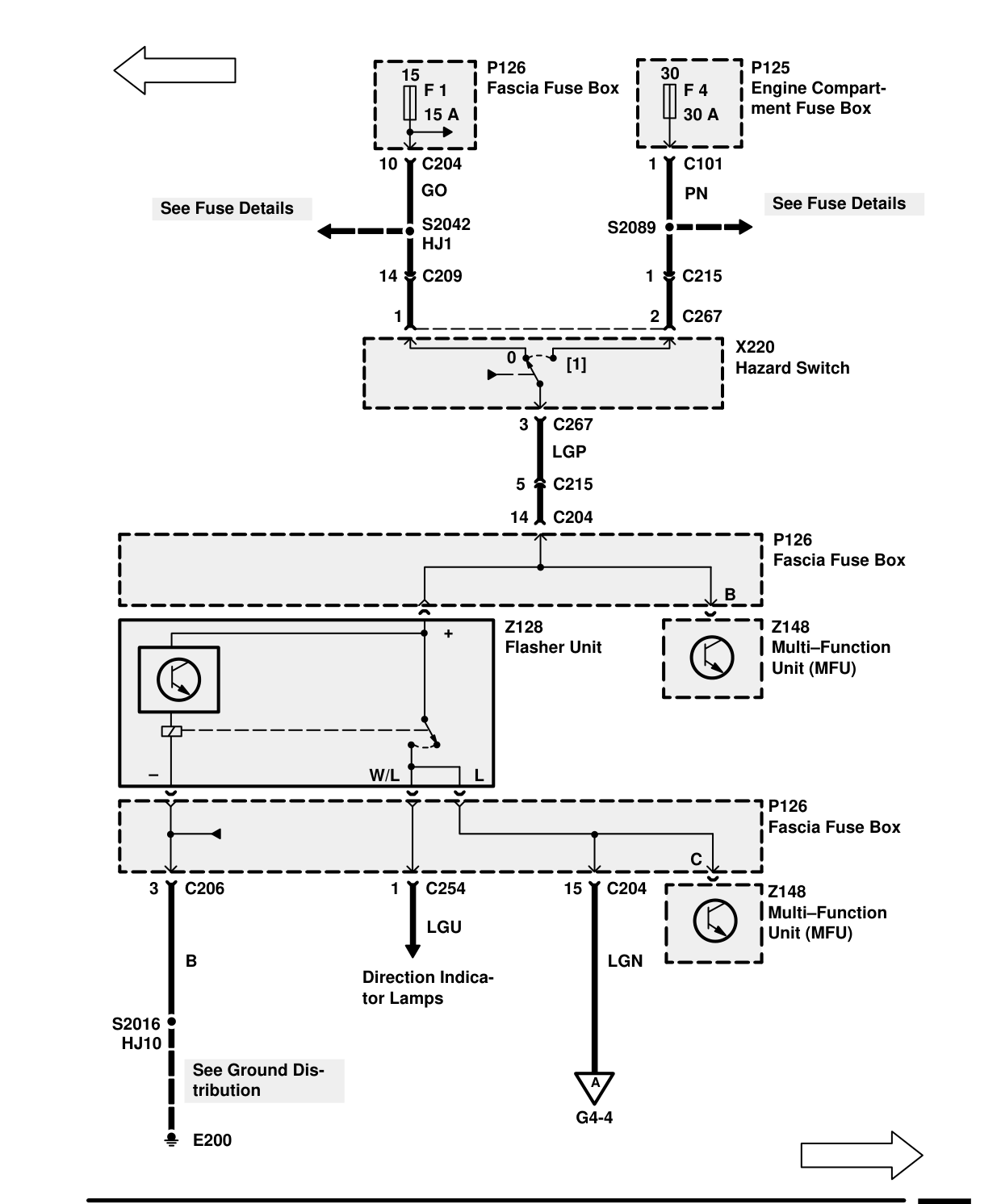

MULTI-FUNCTION UNIT (MFU) – CIRCUIT DIAGRAM
Components on this page
- P125 Engine Compartment Fuse Box
- P126 Fascia Fuse Box
- X220 Hazard Switch
- Z128 Flasher Unit
- Z148 Multi-Function Unit (MFU)
